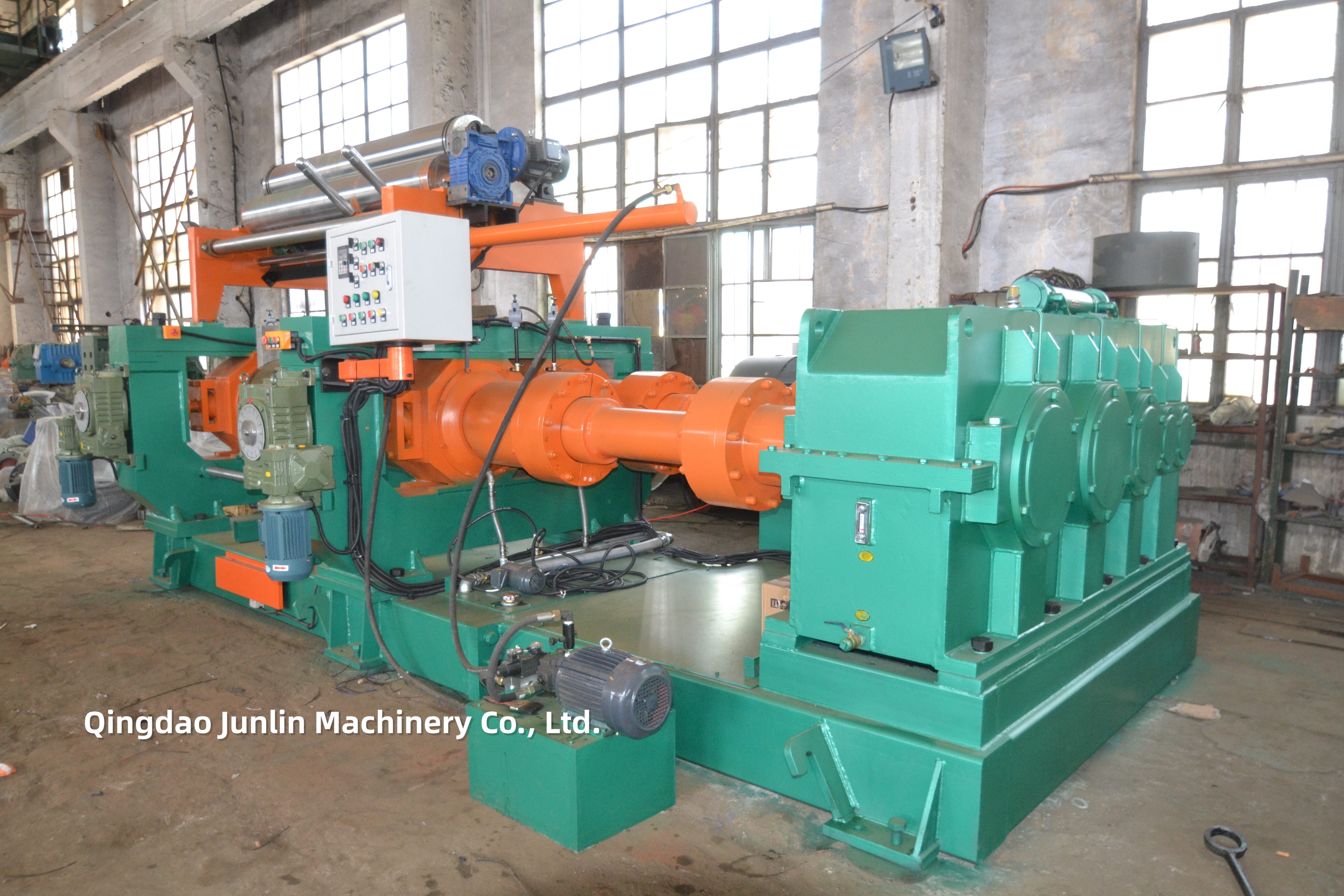

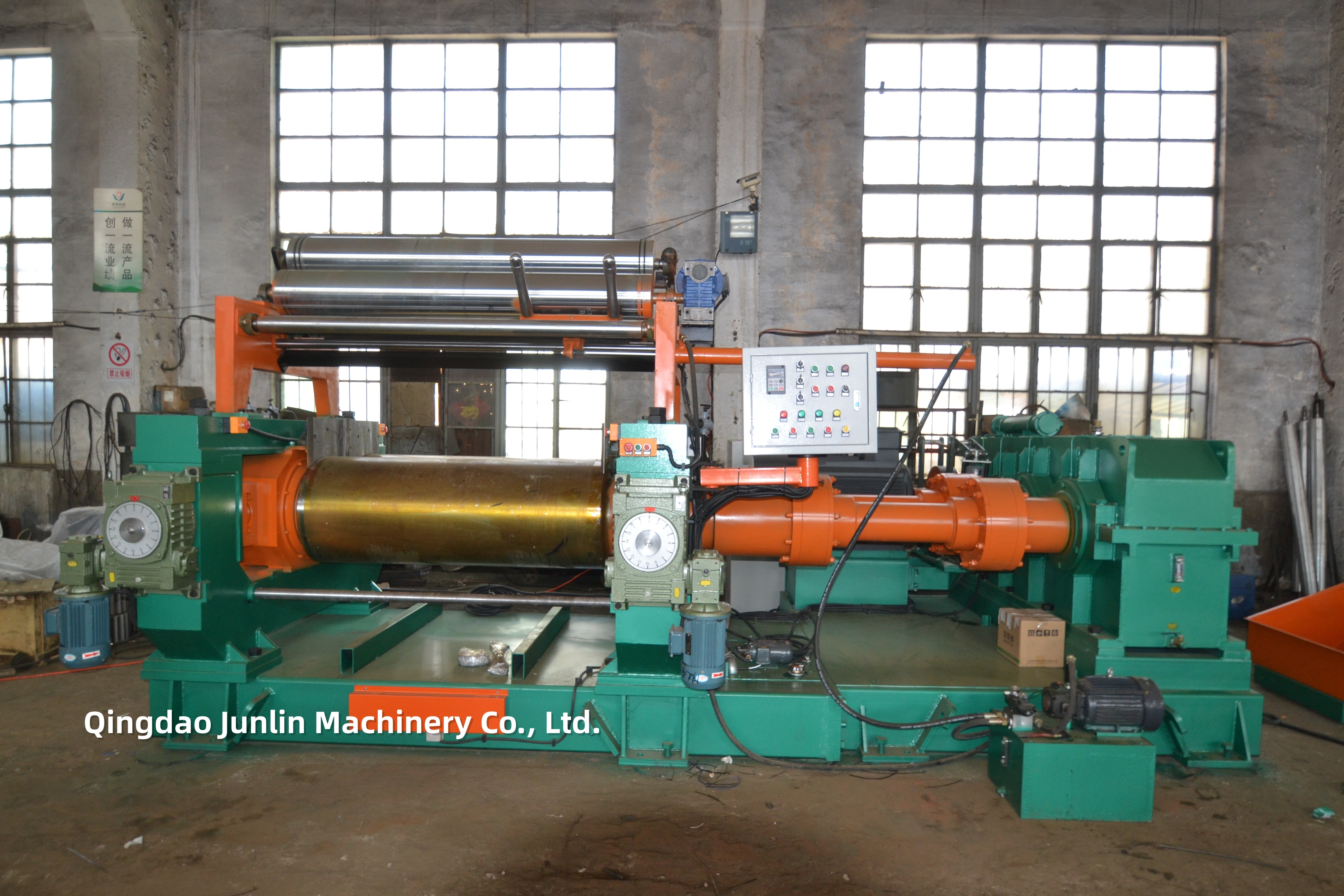

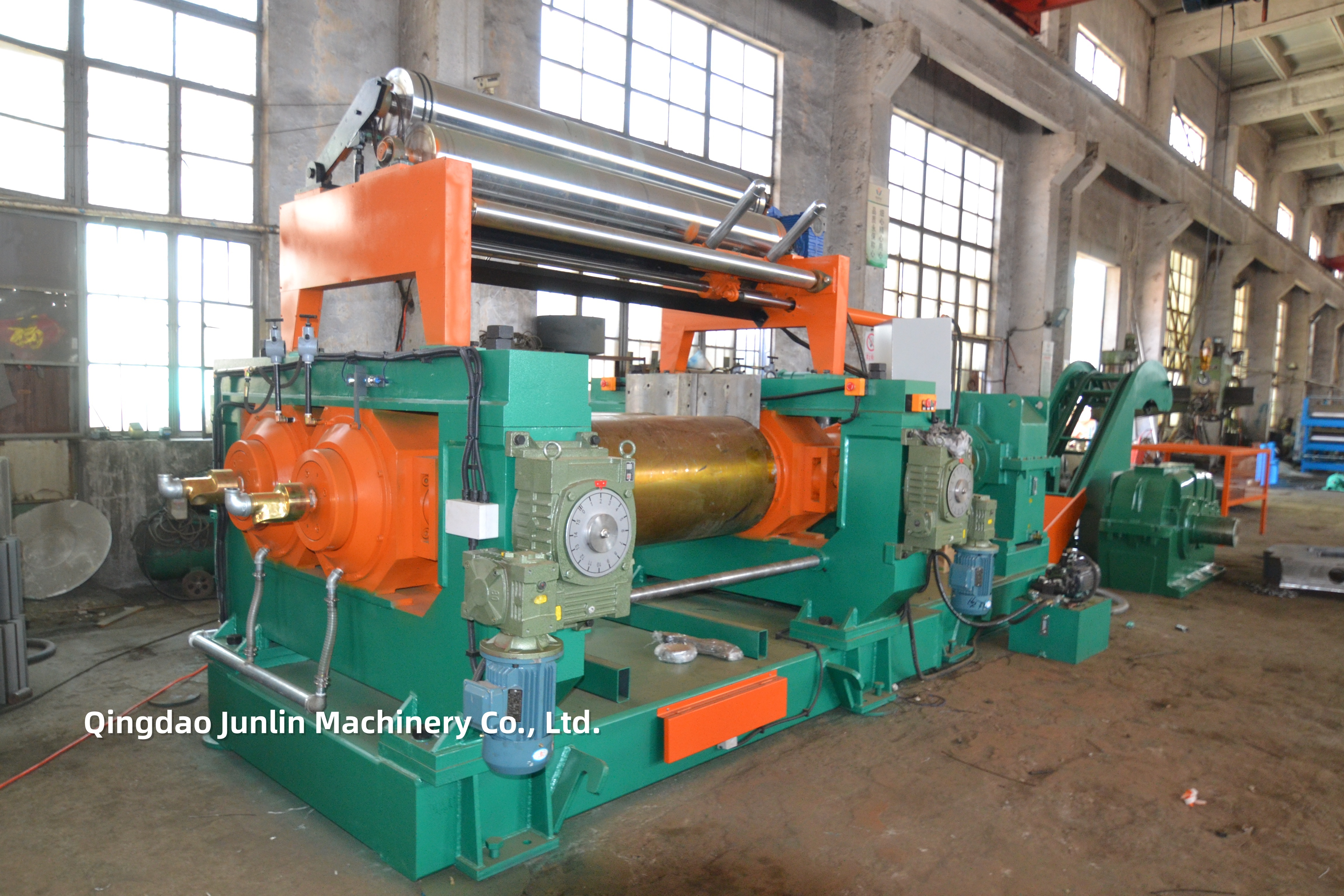

XK-550 Automatic Low Energy Consumption Rubber Open Mixing Mill
Productdetails
| Model: | Xk-550 | Stroom: | 90 kW |
|---|---|---|---|
| Voorwaarde: | Nieuw | Rolmateriaal: | gekoeld ijzer |
| Garantie: | 1 jaar | Verpakking: | Houten kist |
| Markeren |
22 inch rubber mixing mill,low noise open mixing mill,PLC controlled rubber mill |
||
Productbeschrijving
| Model | XK-160 | XK-230 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ160 | Φ230 | Φ250 | Φ360 | Φ400 |
| Working length of rollers(mm) | 320 | 600 | 620 | 900 | 1000 |
| Liner speed of front rollers | 8.03 | 10.94 | 14.1 | 16.25 | 18.65 |
| Speed ratio of front and rear roller | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.27 |
| Capacity per batch(kg) | 1～2 | 6～10 | 10～15 | 20～25 | 18～35 |
| Motor power(kw) | 7.5 | 15 | 18.5 | 30 | 37 |
| Overall size L×W×H(mm) | 1380×860×1320 | 2800×1200×1120 | 3000×1500×1500 | 3850×1650×1750 | 4250×1850×1870 |
| Weight (kg) | 1000 | 2300 | 3000 | 6500 | 7000 |
| Notes | Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil | ||||
| Model | XK-450 | XK-550/560 | XK-610 | XK-660 | XK-710 | XK-810 |
|---|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ450 | Φ550/Φ560 | Φ610 | Φ660 | Φ710 | Φ810 |
| Working length of rollers(mm) | 1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 |
| Liner speed of front rollers | 24.5 | 27.87 | 30 | 28.6 | 31.9 | 21 |
| Speed ratio of front and rear roller | 1:1.27 | 1:1.2 | 1:1.29 | 1:1.24 | 1:1.15 | 1:1.27 |
| Capacity per batch(kg) | 25～50 | 50～100 | 90～120 | 130～165 | 150～200 | 180～250 |
| Motor power(kw) | 55 | 90/110 | 160/185 | 185/250 | 285 | 2x250 |
| Overall size L×W×H(mm) | 5200×1800×2000 | 6500×2300×2000 | 7500×2500×2640 | 7600×3400×2500 | 8246×3556×2270 | 9736×5160×2070 |
| Weight (kg) | 10000 | 20000 | 28000 | 47000 | 51000 | 74500 |
| Notes | Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil | |||||
The open mixing mill is mechanical equipment for rubber heating, mixing, mastication, and sheeting. Suitable for processing high-elasticity, high-viscosity compounds used in rubber products such as:
- Conveyor belts
- Sealing components
- Hoses
- Cables
- Vibration dampers
Used for mastication and mixing of rubber, plastics, and other raw materials, as well as heating and sheeting of rubber compounds.
- Customizable configurations available
- Hard surface layer with excellent internal toughness
- High strength construction
- Superior wear and corrosion resistance
- Excellent thermal conductivity
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
(Our products and parameters are constantly being improved and optimized. For the latest information, please contact us.)
