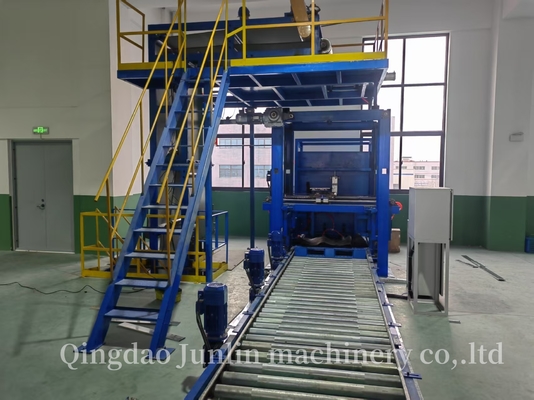

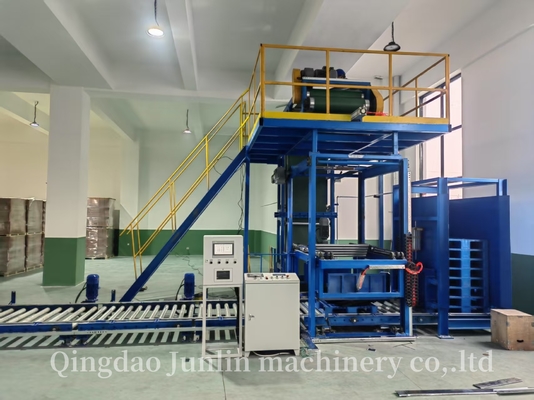

Automatic Hanging Rod Type Batch Off Cooler Rubber Sheet Cooling Machine
Product Details
| Type: | Batch Off Cooler | Origin: | China |
|---|---|---|---|
| Control Type: | PLC | Warranty: | 12 Month |
| Cooling Method: | Water Cooling | Voltage: | As Per Customer Request |
| Highlight |
Hanging Rod Type Batch Off Cooler,Automatic Batch Off Cooler,Automatic Rubber Sheet Cooling Machine |
||
Product Description
| Applicable piece specification(T*W)(mm) | (4-12)*600-900 |
|---|---|
| Power supply (V/Hz) | 380/50 |
| Compressed air pressure (Mpa) | 0.4～0.8 |
|
Piece-joining conveying Max speed (m/min) |
35 |
| Piece rod chain speed(m/min) | 0.117～0.75 |
| Max pendant length of hanging sheet(mm) | 1400 |
|
Cooling fan FTA-8 capacity(KWXPCS) |
Final mixing0.37*48
Master batch0.37*60 |
|
swing sheet length(m) |
1.3(adjustable)
|
|
swing sheet frequency (m/min) |
13(adjustable)
|
| Sheet temperature (for reference) | Ambient temperature+5° |
It's used for the overhead suspension cooling of rubber sheets after rubber mixing and extruding by an extruder. In the rubber mixing workshops of rubber product industries like tire manufacturing, conveyor belt manufacturing, rubber hoses, and engineering rubber, it's used to quickly cool the rubber sheets after mixing.
Achieve contactless suspension cooling of hot films.
The product can be customized and can be elevated, achieving the purpose of saving space. It can be equipped with automatic palletizing, automatic cutting, and automatic pushing after weighing.
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
Serving key sectors:
Tire Manufacturing
Rubber & Plastics Processing
Thermal Insulation Materials
Sealing Products
Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
24/7 Technical Assistance:
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
Customized Engineering Solutions:
Tailored process optimization and lifecycle management guidance for rubber compounding operations
Genuine Parts Supply:
Original components provided (transportation costs borne by customer)
Quality Warranty Commitment:
Free replacement for equipment damage caused by verified product defects
(Detailed terms specified in warranty agreement)
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
