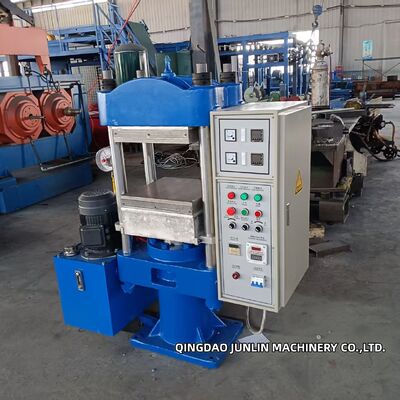

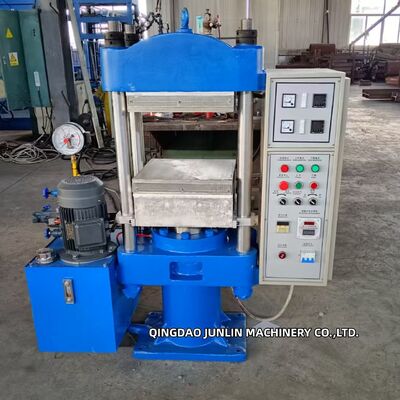

Column Type Hydraulic Vulcanizing Press Machine For Rubber Moulding
Product Details
| Type: | Rubber Vulcanizer | Package Size: | According To Product Size |
|---|---|---|---|
| Voltage: | Customer Request | Warranty: | 12 Month |
| Color: | Customized | Condition: | New |
| Highlight |
column hydraulic vulcanizing press,rubber moulding press machine,hydraulic rubber vulcanizer |
||
Product Description
|
Model |
Nominal Clamp Force (MN) |
Hot Plate Spec (mm) |
Working Layers |
Piston Diameter (mm) |
Key Data (Weight/Size/Power) |
Mould Speed (mm/s)
|
|
XLB-D/Q400x400x2E |
0.5 |
400x400 |
2 |
φ200 |
1300kg; 1500x750x1500mm; 1.5kw |
Close/Open: ≥12 |
|
XLB-D/Q600x600x2D |
1 |
600x600 |
2 |
φ300 |
2600kg; 2000x700x1700mm; 2.2kw |
Close/Open: ≥12 |
|
XLB-D/Q600x600x2 |
1.6 |
600x600 |
2 |
φ360 |
2800kg; 2000x700x1700mm; 2.2kw |
Close/Open: ≥12 |
|
XLB-D/Q450x450/600x2 |
1.6 |
450x450/600 |
2 |
φ360 |
2550/2600kg; 1800/2000x550x2100mm; 2.2kw |
Close/Open: ≥12 |
|
XLB-D/Q750x850x2 |
1.6 |
750x850 |
2 |
φ360 |
5000kg; 2550x960x2100mm; 3kw |
Close/Open: ≥12 |
Column type plate rubber vulcanising presses are primarily employed within the rubber and tyre manufacturing industries. They are utilised for pressing various standard, smaller-sized rubber moulded products, as well as thermosetting and thermoplastic plastic moulded items. Through chemical reactions, these presses vulcanise rubber compounds, causing the polymer chains within the material to cross-link. This process enhances mechanical properties such as strength, elasticity, and durability.
The hydraulic system utilizes a high- and low-pressure combination. During mold closing, the high-flow, low-pressure oil provided by a high-flow, low-pressure pump is primarily used to operate the mold. After mold closing, when the pressure is increased, the low-pressure oil is relieved and overflowed, allowing the low-flow, high-pressure pump to provide the high pressure. This ensures efficient operation while reducing the drive rate, thereby reducing energy consumption and increasing efficiency.
The electric heating system utilizes a thermostat to automatically maintain a constant temperature on the hot platen surface. The heaters are rationally distributed, and the heater structure has been effectively improved.
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
(Our products and parameters are constantly being improved and optimized. For the latest information, please contact us.)
