Space Saving Suspension Batch Off Cooler Fully Automatic High Cleanliness
Product Details
| Frequency: | 50HZ 60HZ | Control System: | PLC |
|---|---|---|---|
| Voltage: | 220V 380V 415V 420V 440V | Safety Device: | Overload Protection |
| Color: | Customizable | Friction Ratio: | 1:1.17 |
| Cooling Method: | Cooling | ||
| Highlight |
Space Saving Batch Off Cooler,Batch Off Cooler Fully Automatic,High Cleanliness rubber cooling machine |
||
Product Description

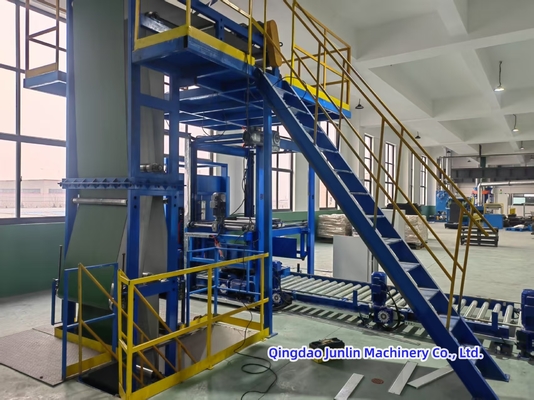

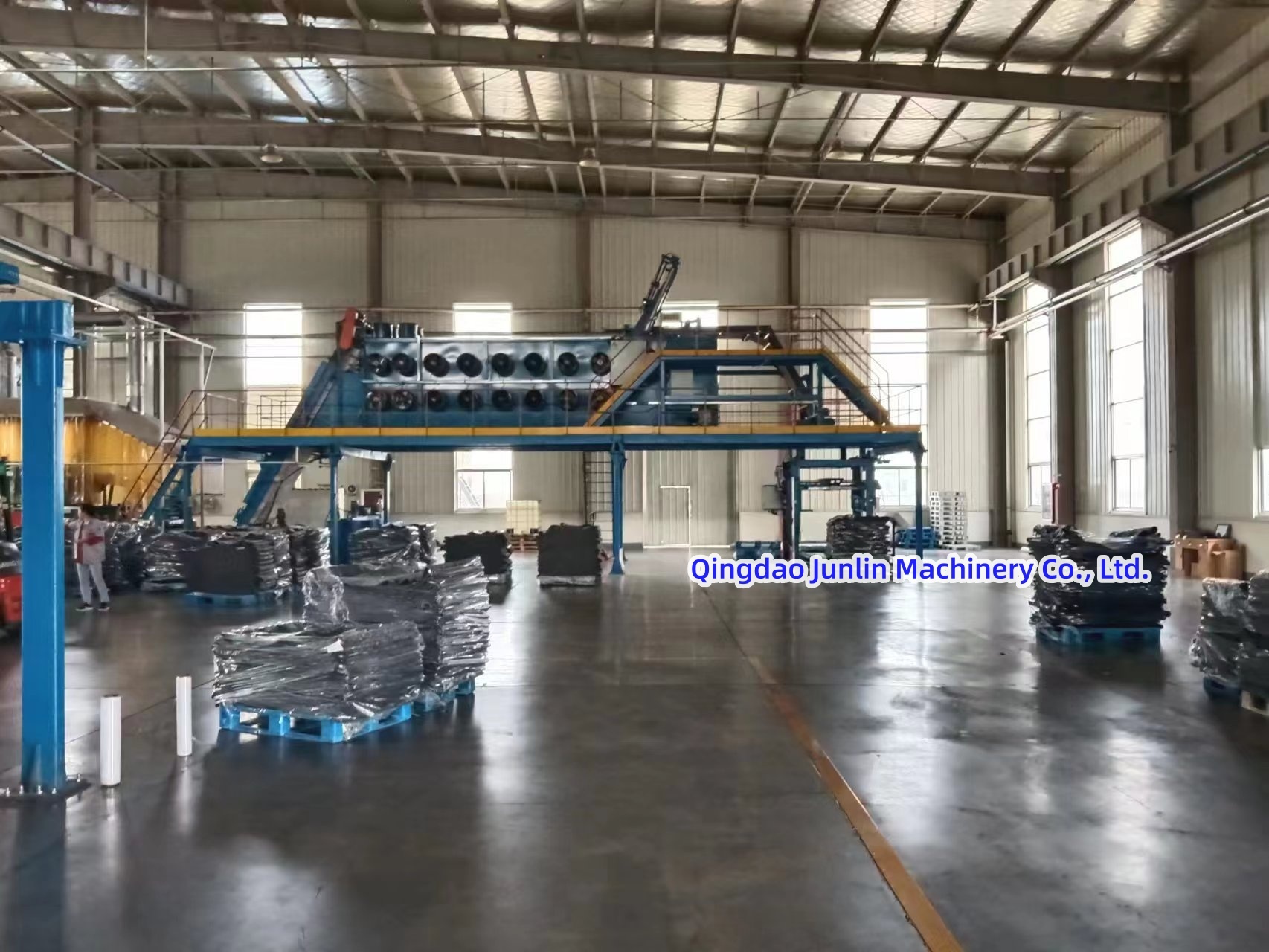

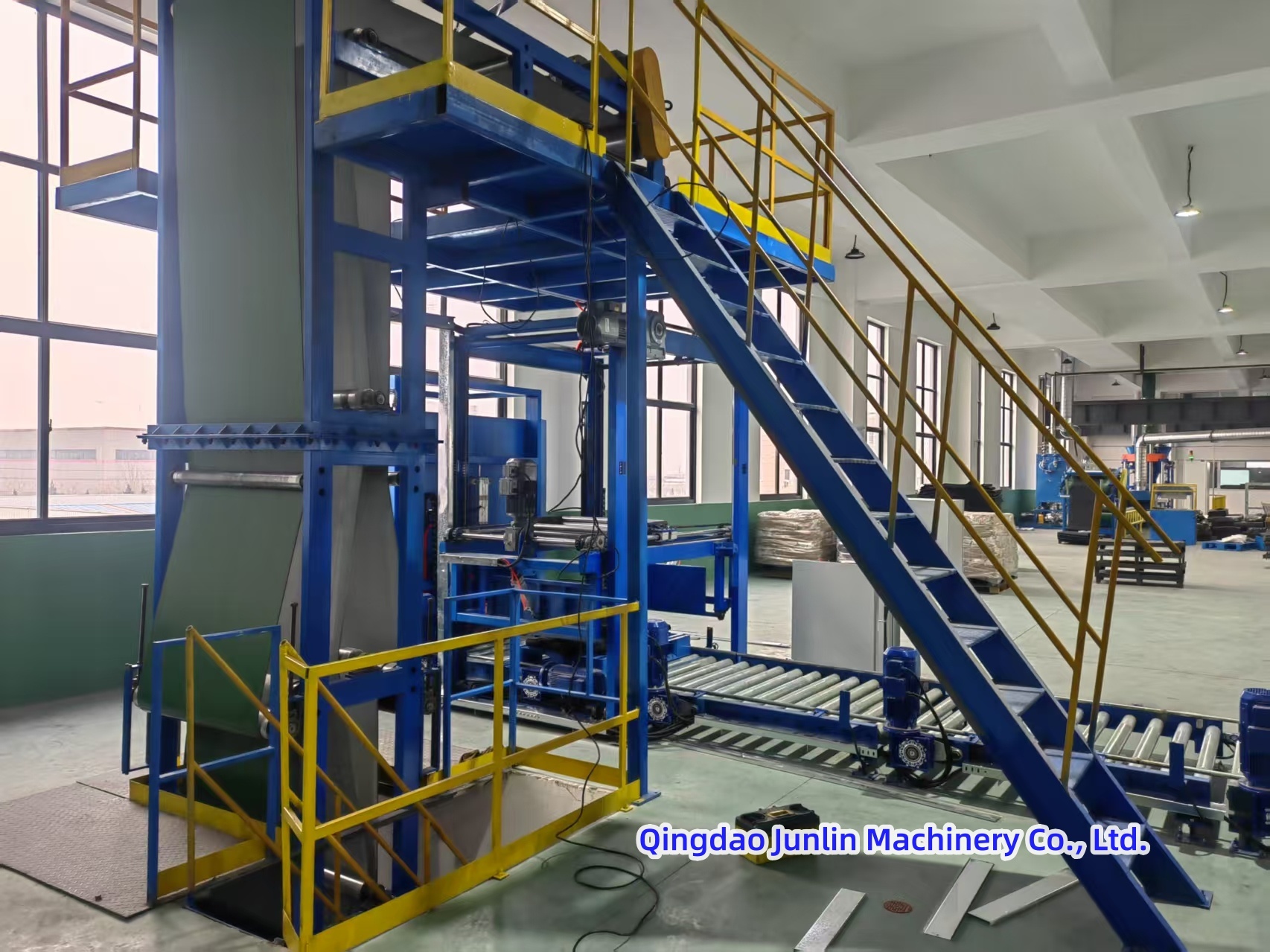

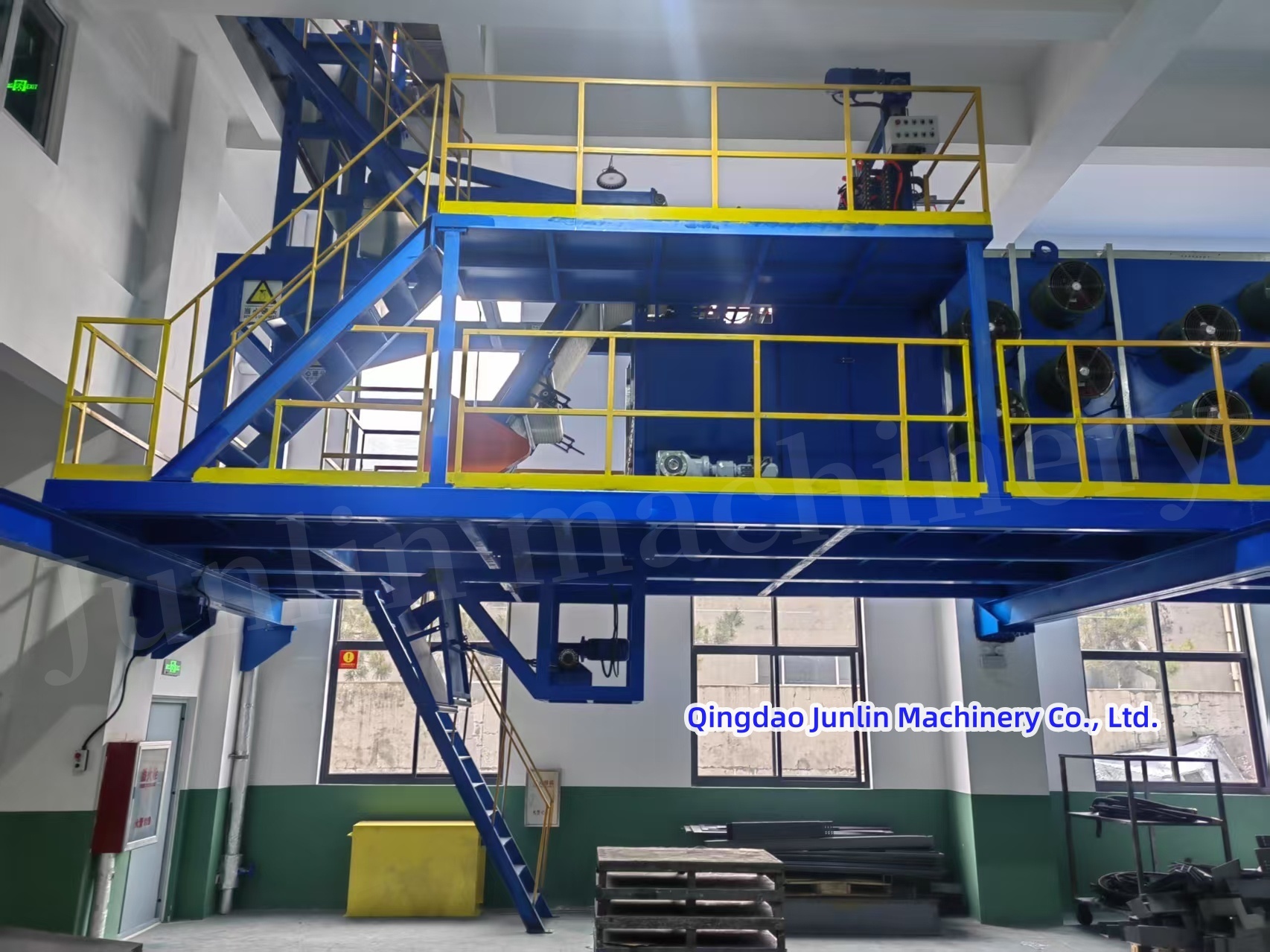

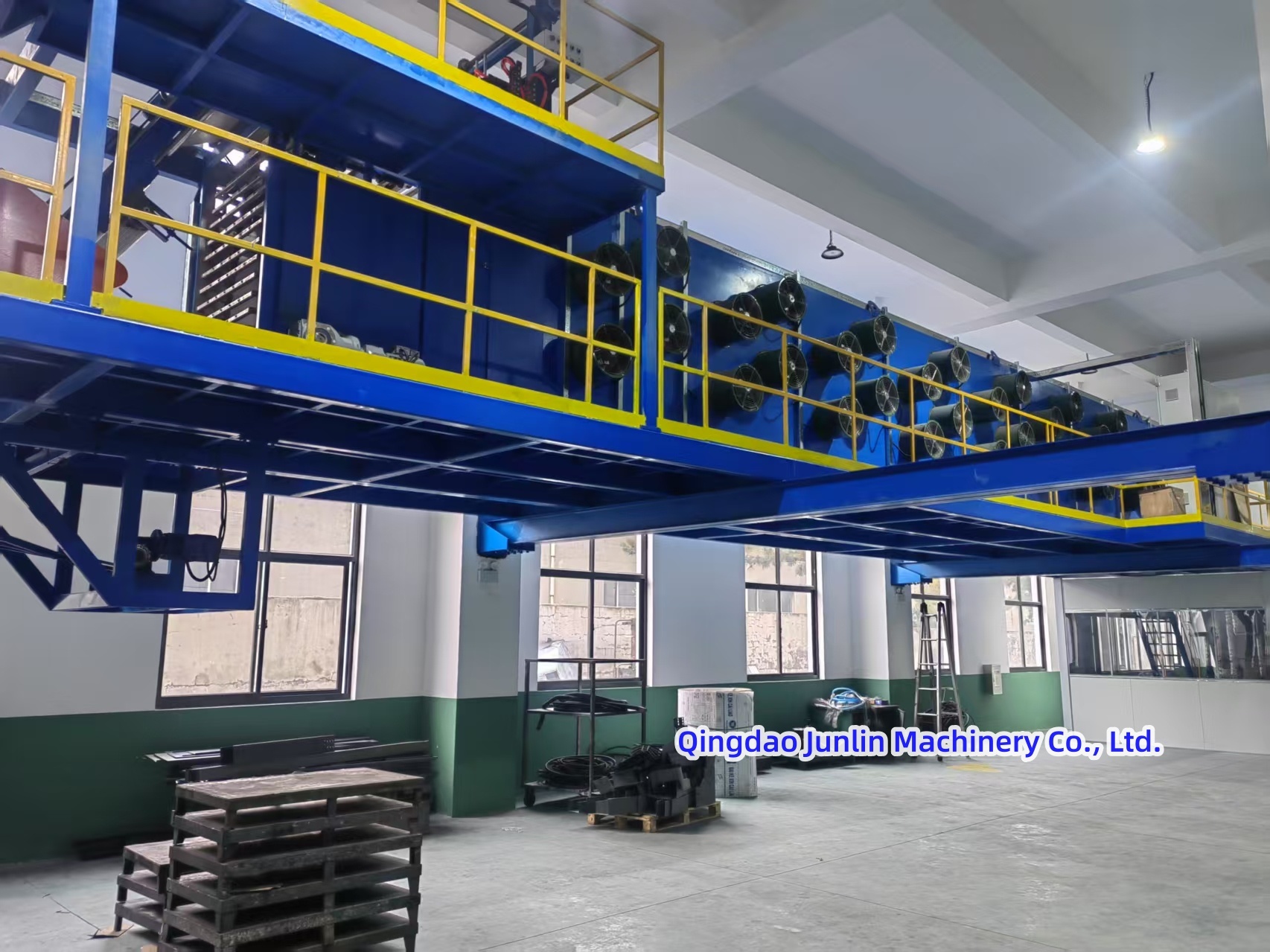

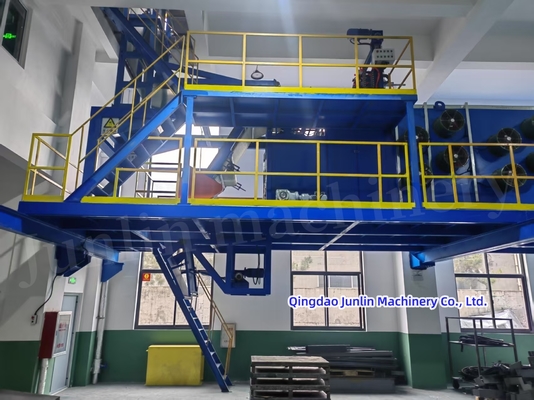

Rubber cooling (Batch off cooler)
Technical Parameters
| Parameter | Specification |
|---|---|
| Applicable Film Size (mm) | (4-12) × 600-900 |
| Power Supply (V/Hz) | 380/50 |
| Air Pressure (MPa) | 0.4～0.8 |
| Max. Conveyor Line Speed (m/min) | 35 |
| Film Hanging Rod Speed (m/min) | 0.117～0.75 |
| Max. Suspension Height (mm) | 1400 |
| Axial Fans FTA-8 (kW×PCS) | Final Mix: 0.37×48 Master Batch: 0.37×60 |
| Film Swing Amplitude (adj.) (m) | 1.3 |
| Swing Frequency (m/min) | Adjustable |
| Film Temp. (Reference) | Ambient +5°C |
Note: Technical parameters are subject to customization. Specifications herein are for reference only.
Industrial Application
Purpose-built for rapid, contact-free cooling of extruded/mixed rubber films in critical production environments:
-
Tire tread & inner liner processing
-
Conveyor belt skim coat solidification
-
Hydraulic hose compound stabilization
-
Industrial sheet goods tempering
Core Function
Tension-free suspension cooling preventing deformation while achieving ΔT≥80°C/min thermal transfer
Advanced Features
| Capability | Technical Advantage |
|---|---|
| Adaptable Layout Design | Custom length/height configurations (3-50m spans) |
| Vertical Space Optimization | 40% floor space reduction vs. conveyor systems |
| Automated Material Handling | Programmable stacking + laser-guided cutting |
| Intelligent Ejection | Load-cell triggered discharge (±0.2kg precision) |
| Industry 4.0 Integration | OPC-UA connectivity for SCADA/MES synchronization |
Comprehensive After-Sales Service Commitment
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
Serving key sectors:
Tire Manufacturing
Rubber & Plastics Processing
Thermal Insulation Materials
Sealing Products
Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
24/7 Technical Assistance:
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
Customized Engineering Solutions:
Tailored process optimization and lifecycle management guidance for rubber compounding operations
Genuine Parts Supply:
Original components provided (transportation costs borne by customer)
Quality Warranty Commitment:
Free replacement for equipment damage caused by verified product defects
(Detailed terms specified in warranty agreement)
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
