Home /Products/Rubber Vulcanizer/XLB-D/Q 400×400×2 Rubber Vulcanizer Double Heated Platen Column Type Uniform Curing

XLB-D/Q 400×400×2 Rubber Vulcanizer Double Heated Platen Column Type Uniform Curing

1
MOQ
USD2,670–10,170/Set
Price
XLB-D/Q 400×400×2 Rubber Vulcanizer Double Heated Platen Column Type Uniform Curing
Features Gallery Product Description Chat Now
Features
Specifications
Voltage: 380V 50HZ Or Customized
Package Size: According To Product Size
Vulcanizing Temperature: Adjustable, 200 °C
Size: Various Sizes Available
Type: Column Type Plate Vulcanizing Press
Condition: New
Highlight:

400×400×2 Rubber Vulcanizer

,

Double Heated Platen Rubber Vulcanizer

,

400x400 Rubber vulcanizing press
Basic Infomation
Place of Origin: Qingdao, Shandong, China
Brand Name: junlin
Certification: Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate,etc.
Model Number: XLB-D/Q
Document: Junlin machinery PDF.pdf
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 30–90 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500/year
Product Description
XLB-D/Q 400×400×2 Double-Heated Platen Column Type Vulcanizing Press for Uniform Curing
Product Specifications
Attribute Value
Voltage 380V 50HZ Or Customized
Package Size According to product size
Vulcanizing Temperature Adjustable, 200 °C
Size Various sizes available
Type Column Type Plate Vulcanizing Press
Condition New
Technical Specifications
Type XLB-D/Q400x400x2E XLB-D/Q600x600x2D XLB-D/Q600x600x2 XLB-D/Q450x450/600x2 XLB-D/Q750x850x2
Nominal clamp mould force(mm) 0.5 1 1.6 1.6 1.6
Specification of hot plate(mm) 400x400 600x600 600x600 450x450/600 750x850
Number of working layer(layer) 2 2 2 2 2
Piston diameter(mm) φ200 φ300 φ360 φ360 φ360
Max.stroke of piston(mm) 250 300 450 450 500
Distance between hot plate(mm) 125 150 250 250 250
Unit area pressure of hot plate(mpa) 3.1 2.78 4.44 7.9/5.9 2.5
Motor power(kw) 1.5 2.2 2.2 2.2 3
Weight(kg) 1300 2600 2800 2550/2600 5000
Overall sizeLxWxH(mm) 1500x750x1500 2000x700x1700 2000x700x1700 1800x550x2100 2000x550x2100 2550x960x2100
Close mould speed (mm/s) ≥12 ≥12 ≥12 ≥12 ≥12
Open mould speed (mm/s) ≥12 ≥12 ≥12 ≥12 ≥12
Applications
Pressing various ordinary small-sized rubber model products and thermosetting and thermoplastic plastic model products.
Product Function
Make the product more compact, which is conducive to eliminating gases and thereby improving the qualification rate of the finished product.
Product Features
  • Can be controlled manually or electrically according to customer requirements
  • For the steam heating type, a pointer-type instrument is used to display the temperature for easier operation control
Product Images

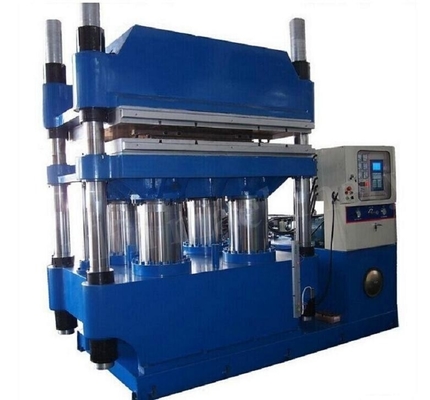

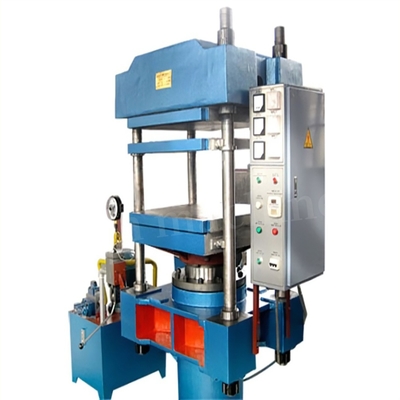

XLB-D/Q 400×400×2 Rubber Vulcanizer Double Heated Platen Column Type Uniform Curing 0 XLB-D/Q 400×400×2 Rubber Vulcanizer Double Heated Platen Column Type Uniform Curing 1
Our Service
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
Serving key sectors:
  • Tire Manufacturing
  • Rubber & Plastics Processing
  • Thermal Insulation Materials
  • Sealing Products
  • Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
  • 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
  • Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
  • Genuine Parts Supply: Original components provided (transportation costs borne by customer)
  • Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
