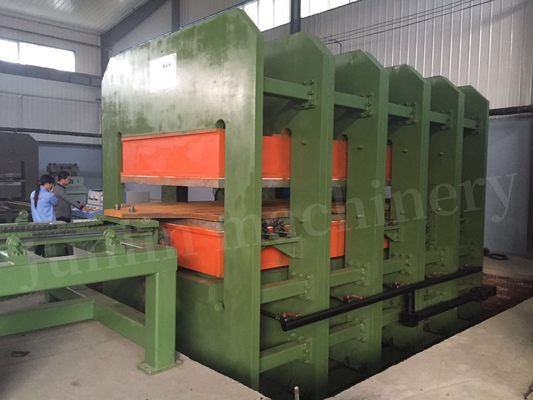

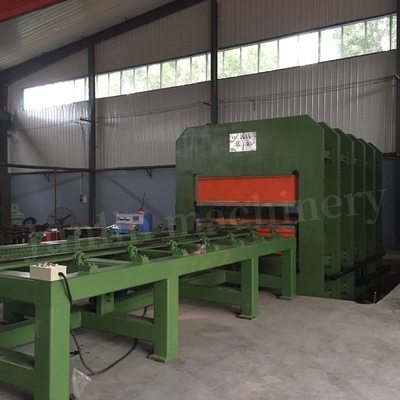

XQL-3000x3000 Frame Type Rubber Vulcanizing Equipment For Large Rubber Parts
Product Details
| Condition: | New | Package Size: | According To Product Size |
|---|---|---|---|
| Warranty: | 1 Year | Type Of Control System: | Manual , Electric Or PLC |
| Heating Method: | Electric/Steam/Oil | Product Name: | Rubber Vulcanizing Press |
| Highlight |
frame type rubber vulcanizing equipment,XQL-3000x3000 rubber vulcanizing equipment,XQL-3000x3000 rubber vulcanizing press |
||
Product Description
| Attribute | Value |
|---|---|
| Condition | New |
| Package Size | According to product size |
| Warranty | 1 year |
| Type of Control System | Manual, electric or PLC |
| Heating Method | Electric/Steam/Oil |
| Product Name | Rubber Vulcanizing Press |
| Model | 1200×1200 | 1500x1500 | 1800×1800 | 2000×2000 | 3000×3000 | 1300×6000 | 1800×10000 |
|---|---|---|---|---|---|---|---|
| Nominal mould clamping force(MN) | 3.5/5.0 | 10 | 20 | 20 | 45 | 25 | 63 |
| Plate size | 1200×1200 | 1500×1500 | 1800×1800 | 2000×2000 | 3000×3000 | 1300×6000 | 1800×10000 |
| Number of working layer | 1 | 1 | 1 | 1 | 4 | 1 | 1 |
| Cylinder number | 1 | 4 | 4 | 4 | 9 | 12 | 20 |
| Piston diameter (mm) | Φ560/600 | Φ450 | Φ650 | Φ650 | Φ650 | Φ400 | Φ500 |
| Stroke of piston(mm) | 300 | 300 | 300 | 400 | 400 | 250 | 300 |
| Distance between hot plate(mm) | 300 | 300 | 300 | 400 | 400 | 250 | 300 |
| Overall size (L×W×H)(mm) | 1920×1300×2160 1920×1300×2960 |
4300×1600×4310 | 4400×1900×4965 | 4500×1900×4965 | 6500×5120×5500 | 6500×2200×3350 | 12000×2400×3980 |
| Weight(kg) | 8500/13000 | 32000 | 46000 | 50000 | 90000 | 70000 | 160000 |
Mainly used for pressing rubber products, engineering rubber, rubber sheets, and similar items.
This series has high pressure per area, which ensures good product quality. Depending on the production needs, a push-pull mold device can be added to make the work easier.
Depending on what the customer needs, it can work with manual control, electric control, or PLC control.
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
