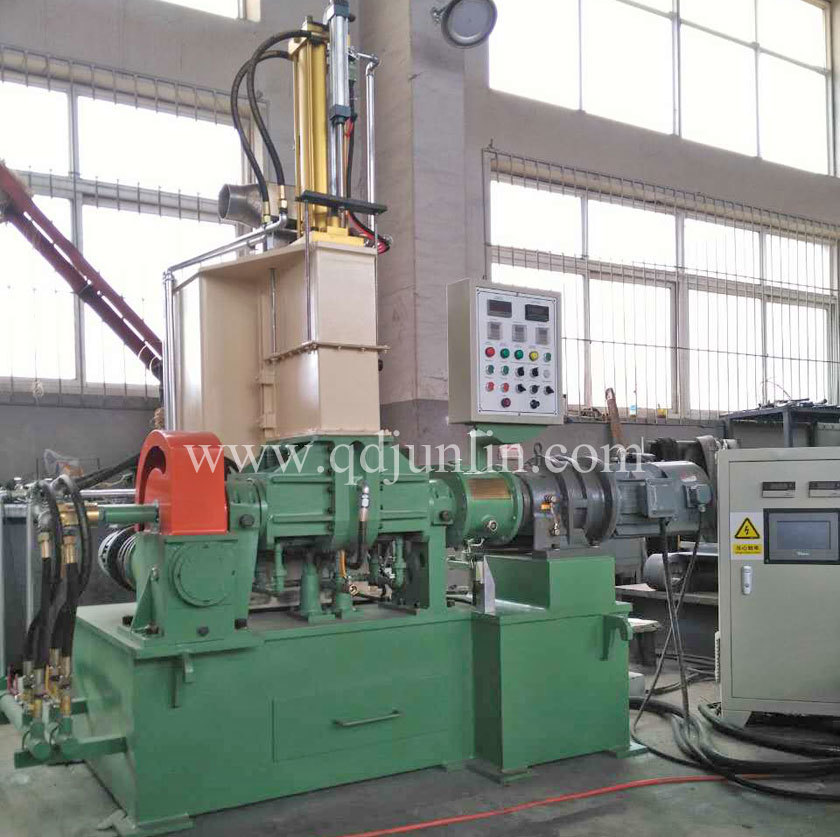

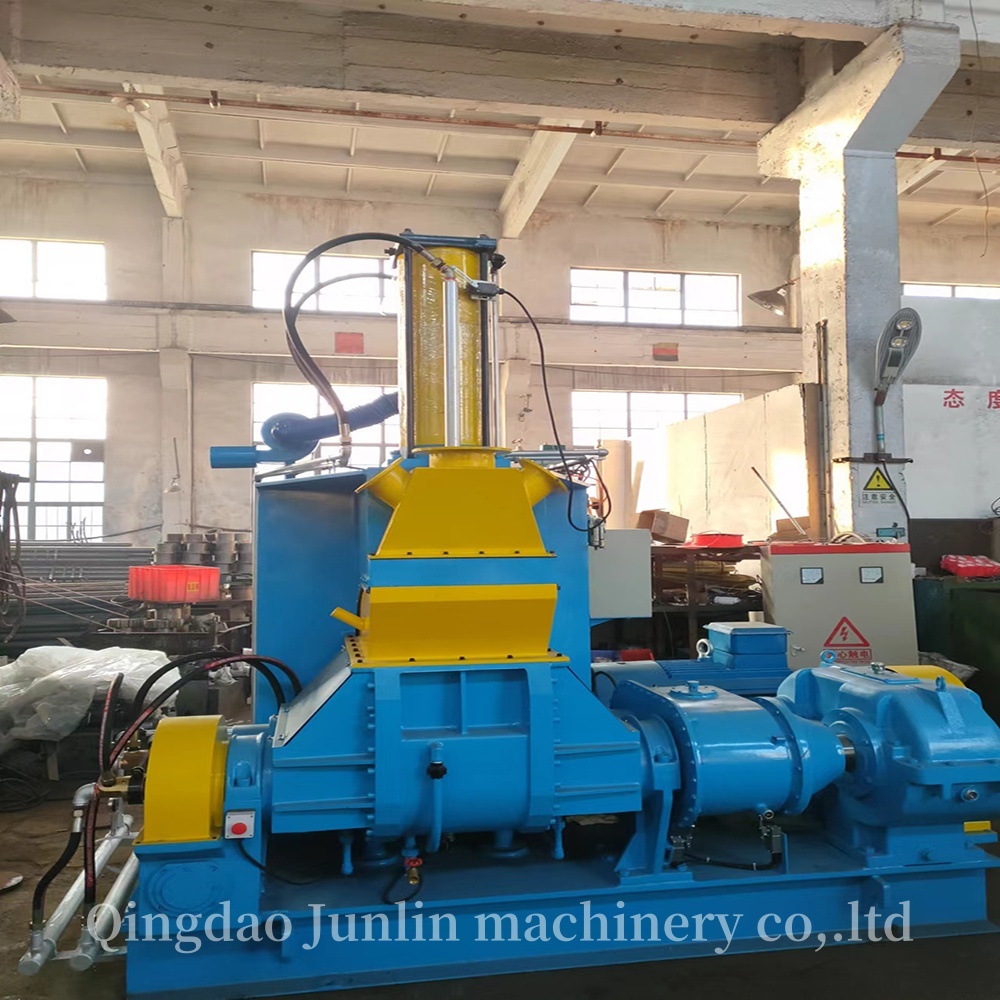

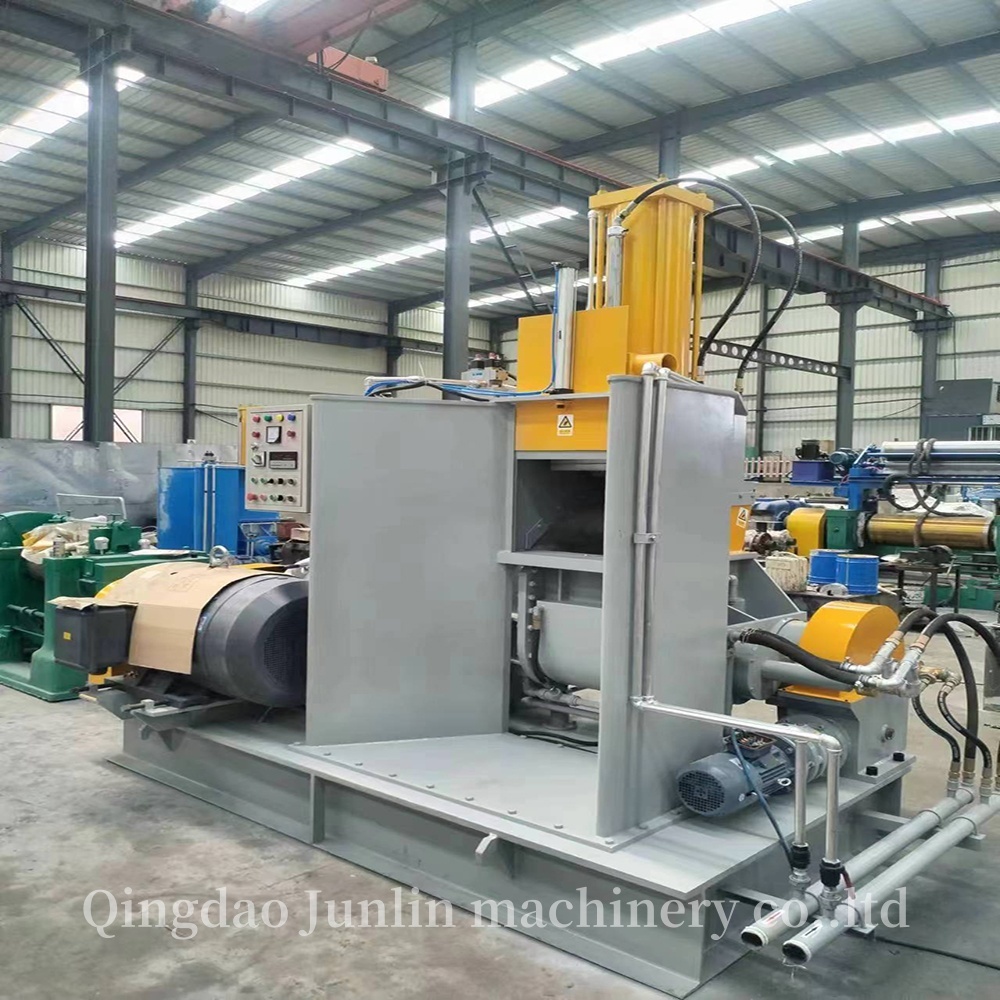

Automatic 35L Rubber Kneader Machine Internal Mixing Banbury Machine
Product Details
| Warranty: | 12 Month | Control System: | PLC |
|---|---|---|---|
| Mixing Speed: | Adjustable | Capacity: | Customized |
| Condition: | New | Mixing Method: | Banbury Mixing |
| Highlight |
35L Rubber Kneader Machine,Automatic Rubber Kneader Machine,35L kneader machine for rubber mixing |
||
Product Description
| Model | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 |
| Total volume of kneading chamber(L) | 75 | 125 | 180 | 250 |
| Total volume of mixing chamber(L) | 35 | 55 | 75 | 110 |
| Driving motor power(kw) | 55 | 75 | 110 | 185 |
| Tipping motor power(kw) | 2.2 | 2.2 | 2.2 | 4 |
Mainly used for the mixing and final refining of rubber or rubber-plastic materials.
This system has achieved the control function for the overall machine, enabling operations such as the rotation, stoppage of the main motor, tilting and resetting of the mixing chamber, lifting and lowering of the top pin on the pressing device, and monitoring and display of the temperature of the rubber material.
There are two types of devices: pneumatic and hydraulic. Under the pressure of the upper top bolt and the seal, the materials are processed in the sealed mixing chamber. Through the shearing, squeezing, stirring, and rolling actions between the two rotors rotating in opposite directions at a certain speed ratio and between them and the wall of the mixing chamber, the new materials required for plasticizing (or mixing) are produced.
Our Service
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
Product Highlights
