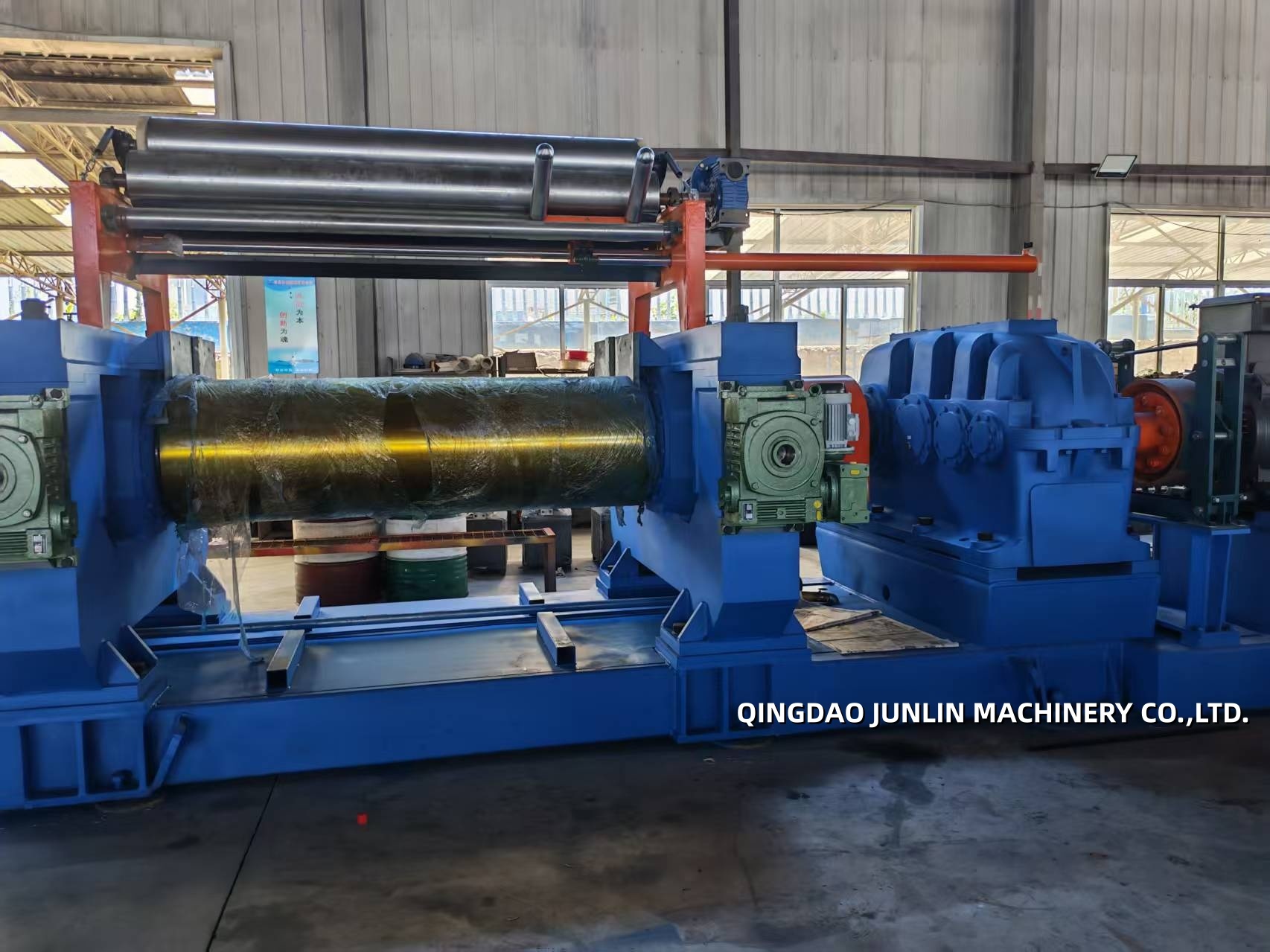

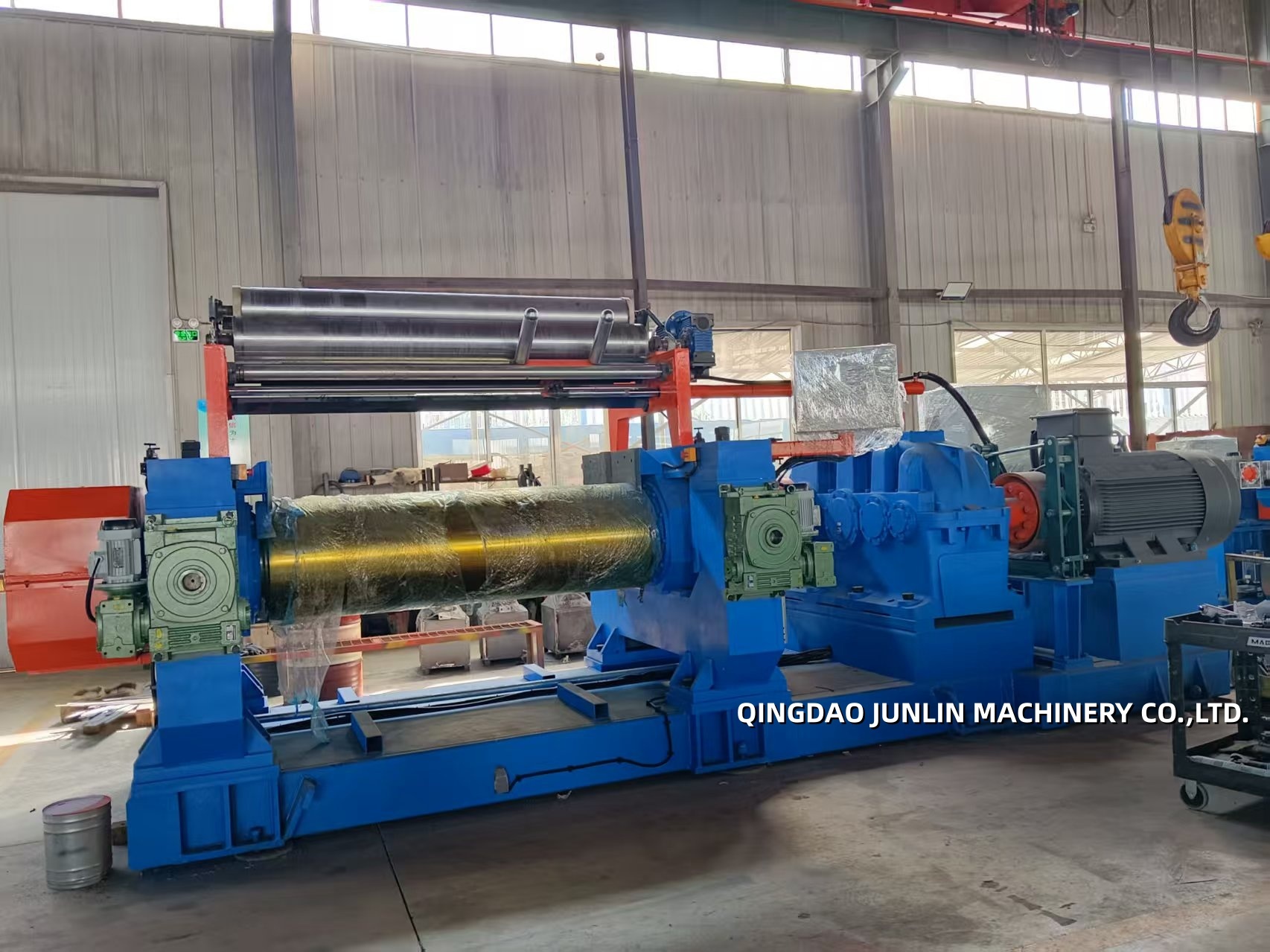

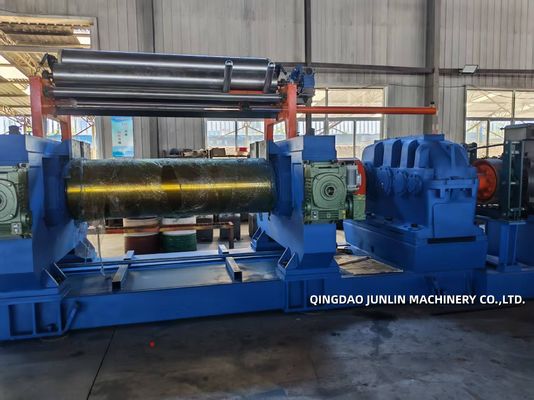

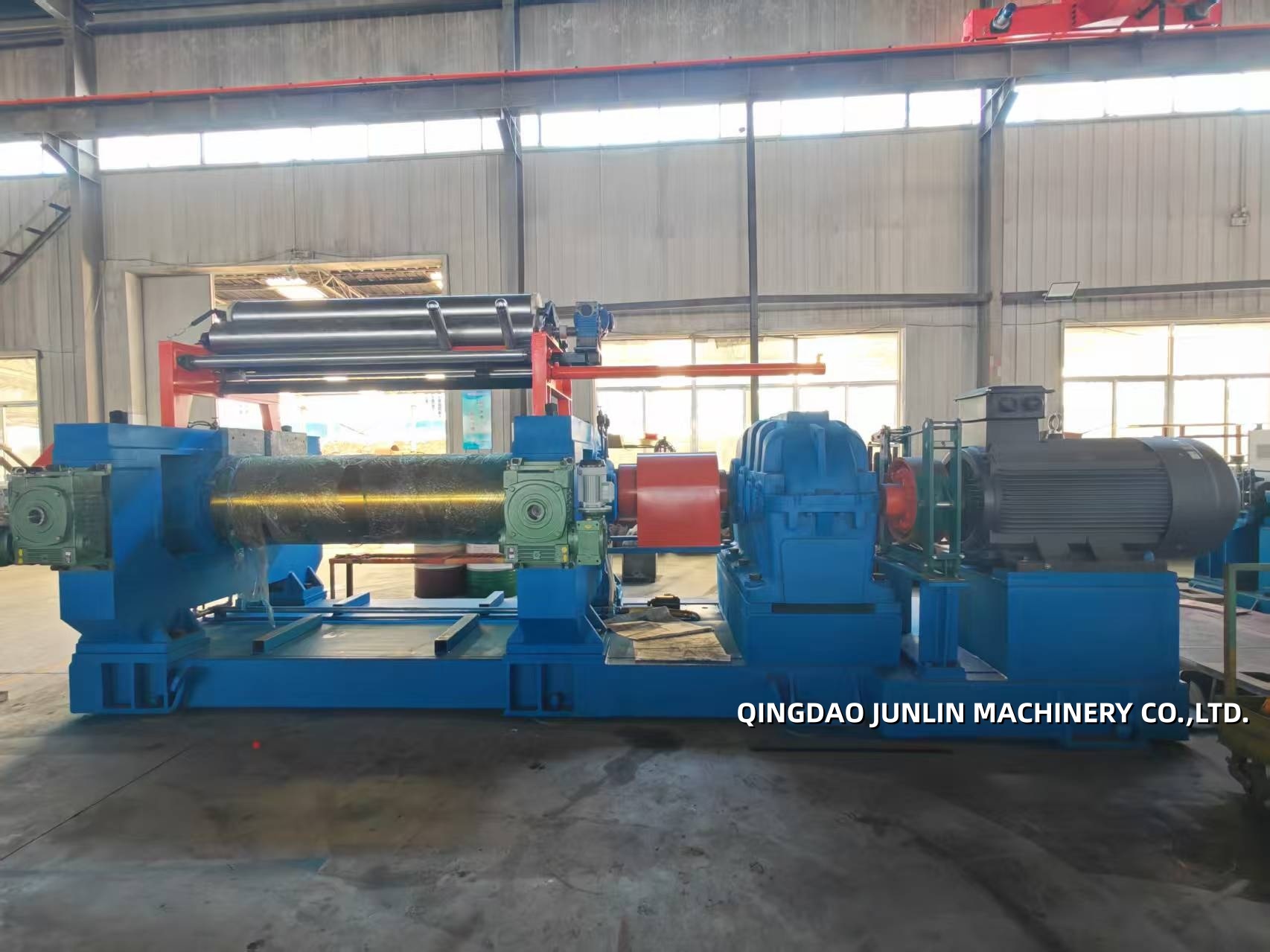

Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Product Details
| Type: | Open Mixing Mill | Warranty: | 1 Year |
|---|---|---|---|
| Material Of Rolls: | Chilled Cast Iron | Cooling System: | Water Cooling |
| Application: | Rubber Mixing | Roll Speed Ratio: | Adjustable |
| Highlight |
customizable silicone rubber mixing machine,two roll open mixing mill,XK-610 rubber mill machine |
||
Product Description
| Model | XK-160 | XK-230 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ160 | Φ230 | Φ250 | Φ360 | Φ400 |
| Working length of rollers(mm) | 320 | 600 | 620 | 900 | 1000 |
| Liner speed of front rollers | 8.03 | 10.94 | 14.1 | 16.25 | 18.65 |
| Speed ratio of front and rear roller | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.27 |
| Capacity per batch(kg) | 1～2 | 6～10 | 10～15 | 20～25 | 18～35 |
| Motor power(kw) | 7.5 | 15 | 18.5 | 30 | 37 |
| Overall size L×W×H(mm) | 1380×860×1320 | 2800×1200×1120 | 3000×1500×1500 | 3850×1650×1750 | 4250×1850×1870 |
| Weight(kg) | 1000 | 2300 | 3000 | 6500 | 7000 |
| Model | XK-450 | XK-550/560 | XK-610 | XK-660 | XK-710 | XK-810 |
|---|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ450 | Φ560/Φ510 | Φ610 | Φ660 | Φ710 | Φ810 |
| Working length of rollers(mm) | 1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 |
| Liner speed of front rollers | 24.5 | 27.87 | 30 | 28.6 | 31.9 | 21 |
| Speed ratio of front and rear roller | 1:1.27 | 1:1.2 | 1:1.29 | 1:1.24 | 1:1.15 | 1:1.27 |
| Capacity per batch(kg) | 25～50 | 50～100 | 90～120 | 130～165 | 150～200 | 180～250 |
| Motor power(kw) | 55 | 90/110 | 160/185 | 185/250 | 285 | 2x250 |
| Overall size L×W×H(mm) | 5200×1800×2000 | 6500×2300×2000 | 7500×2500×2640 | 7600×3400×2500 | 8246×3556×2270 | 9736×5160×2070 |
| Weight(kg) | 10000 | 20000 | 28000 | 47000 | 51000 | 74500 |
- Tire plants
- Transmission belt factories
- Conveyor belt manufacturers
- Rubber product facilities
- Footwear factories
- Cable plants
- Hose producers
- Sealing component manufacturers
- Customizable configurations available
- High hardness and exceptional wear resistance
- Integrated roller temperature regulating device
- Steam or cooling water can be introduced into the roller cylinder for precise temperature control
- Engineered to meet diverse process requirements
- Precision-Centric Solutions
Systematic customized solutions tailored to specific process requirements with seamless integration - Reliable Manufacturing Excellence
Robust production capabilities delivering stable, high-quality machinery with durable performance - Industry-Specific Expertise
Specialized solutions for:- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- Waste tire recycling initiatives
- Comprehensive After-Sales Support
- 24/7 Technical Assistance with remote support and rapid fault diagnosis
- Customized Engineering Solutions for process optimization
- Genuine Parts Supply (customer responsible for transportation costs)
- Quality Warranty Commitment with free replacement for verified product defects
