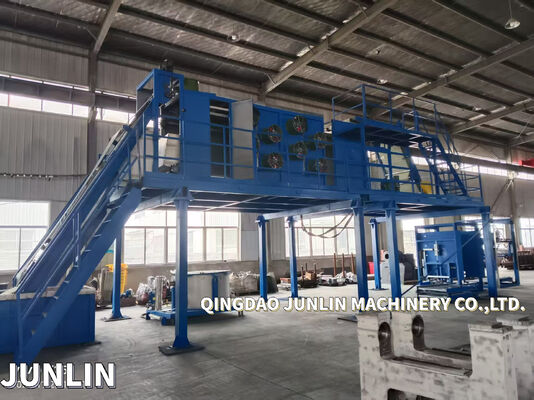

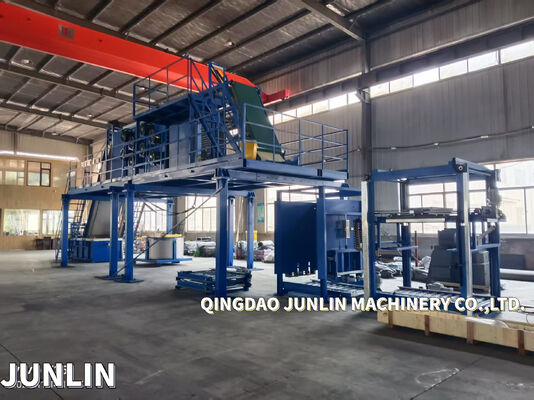

Overhead Type Rubber Batch Off Cooling Unit With Water Cooling Machinery
Product Details
| Product Type: | Batch Off Cooler | Application: | Rubber Sheet Cooling |
|---|---|---|---|
| Specification: | Customized | Swing Sheet Frequency: | Adjustable |
| Suitable Sheet Size: | 600-900mm | Core Components: | Motor，fans |
| Highlight |
overhead rubber batch off cooler,water cooling batch off unit,industrial batch off cooling machinery |
||
Product Description
| Applicable piece specification(T*W)(mm) | (4-12)*600-900 |
|---|---|
| Power supply (V/Hz) | 380/50 |
| Compressed air pressure (Mpa) | 0.4～0.8 |
| Piece-joining conveying Max speed (m/min) | 35 |
| Piece rod chain speed(m/min) | 0.117～0.75 |
| Max pendant length of hanging sheet(mm) | 1400 |
| Cooling fan FTA-8 capacity(KWXPCS) | Final mixing0.37*48 Master batch0.37*60 |
| swing sheet length(m) | 1.3(adjustable) |
| swing sheet frequency (m/min) | 13(adjustable) |
| Sheet temperature (for reference) | Ambient temperature+5° |
Used for the overhead suspension cooling of rubber sheets after mixing and extrusion. It is applied in the compounding areas of tire manufacturing, conveyor belt production, hose making, engineering rubber, and other rubber product industries, enabling rapid cooling after the mixing process is completed.
Achieves contact-free suspended cooling of hot rubber sheets.
Customizable design. Overhead installation saves floor space. Can be equipped with automatic stacking, cutting, weighing, and ejection functions.
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- — Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
- 24/7 Technical Assistance
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance. - Customized Engineering Solutions
Tailored process optimization and lifecycle management guidance for rubber compounding operations. - Genuine Parts Supply
Original components provided (transportation costs borne by customer). - Quality Warranty Commitment
Free replacement for equipment damage caused by verified product defects. (Detailed terms specified in warranty agreement).
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
