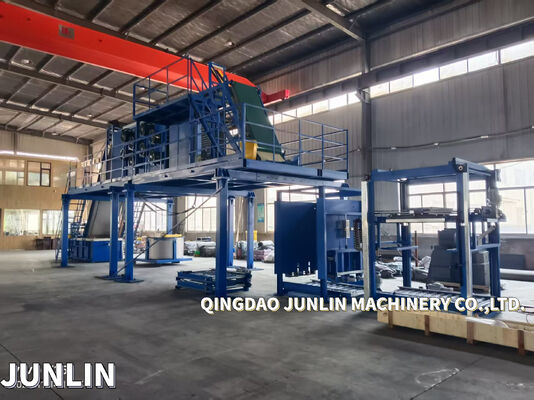

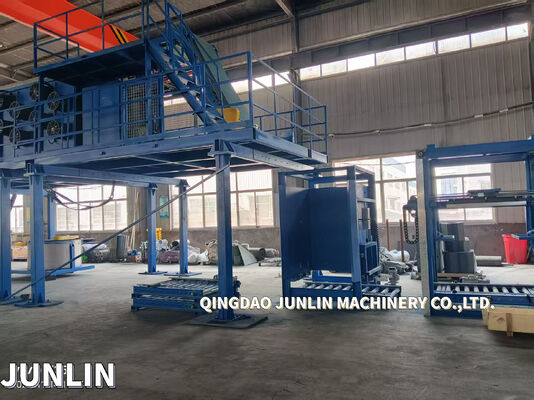

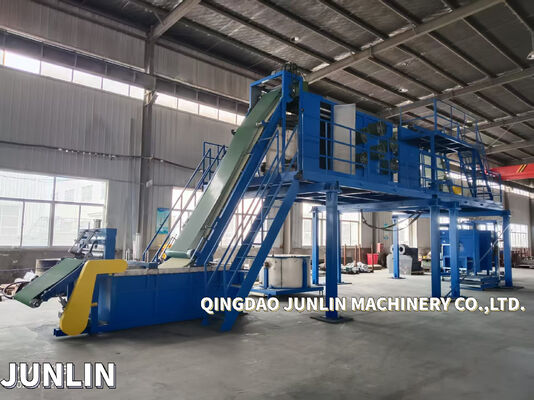

Overhead Type Batch Off Cooling Machine For Rubber Sheet After Mixing
Product Details
| Product Type: | Batch Off Cooler | Function: | Rubber Sheet Cooling |
|---|---|---|---|
| Specification: | Customized | Suitable Sheet Size: | 600-900mm |
| Cooling Fans Number: | Customized | Voltage: | 380V, 50Hz |
| Highlight |
overhead batch-off cooling machine,rubber sheet cooling equipment,batch-off cooler for mixing |
||
Product Description
| Applicable piece specification(T*W)(mm) | (4-12)*600-900 |
|---|---|
| Power supply (V/Hz) | 380/50 |
| Compressed air pressure (Mpa) | 0.4～0.8 |
| Piece-joining conveying Max speed (m/min) | 35 |
| Piece rod chain speed(m/min) | 0.117～0.75 |
| Max pendant length of hanging sheet(mm) | 1400 |
| Cooling fan FTA-8 capacity(KWXPCS) | Final mixing0.37*48 Master batch0.37*60 |
| swing sheet length(m) | 1.3(adjustable) |
| swing sheet frequency (m/min) | 13(adjustable) |
| Sheet temperature (for reference) | Ambient temperature+5° |
Designed to cool rubber sheets via overhead suspension after they exit mixers and extruders, this system operates in the compounding zones of various industries including tire, conveyor belt, hose, and engineering rubber manufacturing, performing rapid cooling post-mixing.
Enables hot rubber sheets to be cooled without contact while suspended.
Featuring a customizable design, it can be installed overhead to maximize space efficiency. The system may incorporate automated processes for stacking, cutting, weighing, and ejecting sheets.
➤ Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
➤ Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
➤ Industry-Specific Expertise
Serving key sectors:
· Tire Manufacturing
· Rubber & Plastics Processing
· Thermal Insulation Materials
· Sealing Products
· Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
➤ Comprehensive After-Sales Support
▌ 24/7 Technical Assistance
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance.
▌ Customized Engineering Solutions
Tailored process optimization and lifecycle management guidance for rubber compounding operations.
▌ Genuine Parts Supply
Original components provided (transportation costs borne by customer).
▌ Quality Warranty Commitment
Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement).
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
