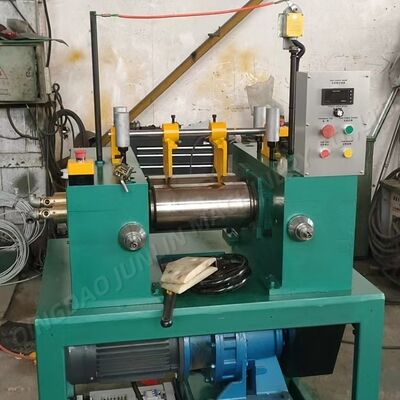

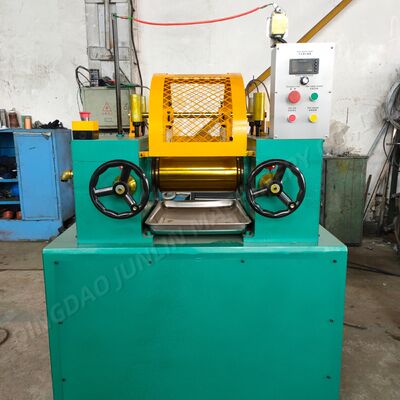

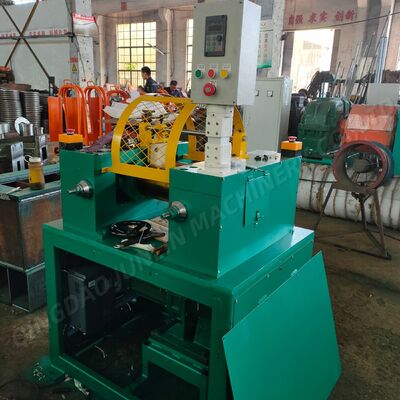

6 Inch Xk-160 Laboratory Electric Heating Two Roll Rubber Mixing Mill
Product Details
| Type: | Open Mixing Mill | Roller: | Alloy Chilled Cast Iron |
|---|---|---|---|
| Warranty: | 1 Year | Safety Features: | Emergency Stop Button |
| Control Type: | Manual | Gap Adjustment: | Manual |
| Highlight |
6 inch electric rubber mixing mill,laboratory two roll mixing mill,Xk-160 electric heating mill |
||
Product Description
| Model | XK-160 | XK-230 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|---|
| Working diameter of rollers (mm) | Φ160 | Φ230 | Φ250 | Φ360 | Φ400 |
| Working length of rollers (mm) | 320 | 600 | 620 | 900 | 1000 |
| Speed ratio of front and rear roller | 8.03 | 10.94 | 14.1 | 16.25 | 18.65 |
| Capacity per batch (kg) | 1～2 | 6～10 | 10～15 | 20～25 | 18～35 |
| Power (kw) | 7.5 | 15 | 18.5 | 30 | 37 |
| Overall size L×W×H (mm) | 1380×860×1320 | 2800×1200×1120 | 3000×1500×1500 | 3850×1650×1750 | 4250×1850×1870 |
| Weight (kg) | 1000 | 2300 | 3000 | 6500 | 7000 |
| Model | XK-450 | XK-550/560 | XK-610 | XK-660 | XK-710 | XK-810 |
|---|---|---|---|---|---|---|
| Working diameter of rollers (mm) | Φ450 | Φ560/Φ510 | Φ610 | Φ660 | Φ710 | Φ810 |
| Working length of rollers (mm) | 1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 |
| Speed ratio of front and rear roller | 24.5 | 27.87 | 30 | 28.6 | 31.9 | 21 |
| Capacity per batch (kg) | 25～50 | 50～100 | 90～120 | 130～165 | 150～200 | 180～250 |
| Power (kw) | 55 | 90/110 | 160/185 | 185/250 | 285 | 2x250 |
| Overall size L×W×H (mm) | 5200×1800×2000 | 6500×2300×2000 | 7500×2500×2640 | 7600×3400×2500 | 8246×3556×2270 | 9736×5160×2070 |
| Weight (kg) | 10000 | 20000 | 28000 | 47000 | 51000 | 74500 |
Notes: Nylon bush uses grease for lubricating, Copper bush and bearing use grease or oil
The open mixing mill is designed for rubber compounding in various industries including tire manufacturing, conveyor belt production, rubber hose fabrication, and engineering rubber goods. The XK-160 model is specifically optimized for laboratory use and small-scale production, making it ideal for university research labs and new product development in rubber product factories.
This mixing mill is used for mastication and mixing of rubber, plastics, and other raw materials, as well as warm-up and sheeting of rubber compounds.
- Compact laboratory-scale design perfect for research institutions and academic facilities
- Customizable heating methods (oil/steam/electric) available to meet specific production requirements
- Precision temperature control with ±3℃ accuracy
- Dual safety systems including collision-type emergency stop and hydraulic brake
- Multiple voltage options available (380V, 220/380V, 380V/50HZ)
- Custom color options including orange, blue, green, yellow, white, and others
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
