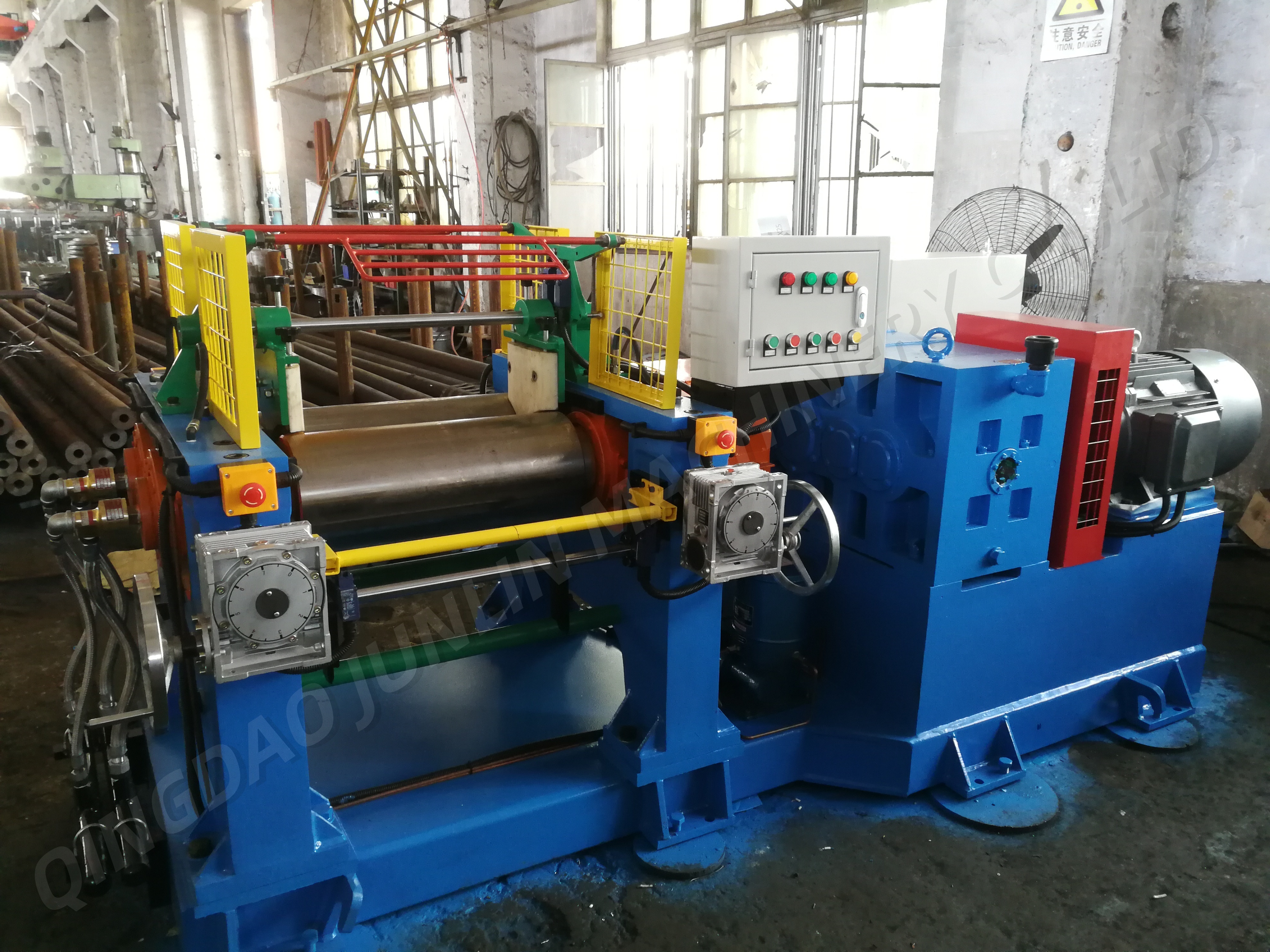

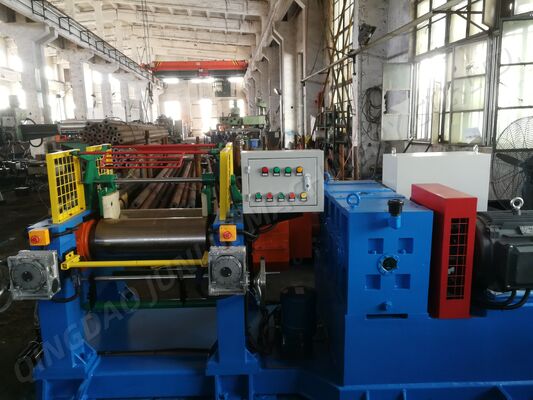

XK-250 Two Roll Rubber Mixing Mill Machine With Emergency Stop Device
Product Details
| Model: | XK-250 | Roller Surface: | Chrome Plated |
|---|---|---|---|
| Layout Type: | Horizontal | Rolle Rmaterial: | Alloyed Chilled Cast Iron |
| Frequency Converter: | Dual Inverter | Condition: | New |
| Highlight |
two roll rubber mixing mill,rubber mixing mill with emergency stop,open mixing mill machine |
||
Product Description
XK-250 Two Roll Rubber Mixing Mill Machine With Emergency Stop Device
Product Parameters
|
Parameter/model |
XK-160 |
XK-250 |
XK-360 |
XK-400 |
XK-450 |
XK-550/560 |
XK-610 |
|
|
Roll (mm) |
160 |
250 |
360 |
400 |
450 |
550/560 |
610 |
|
|
Roll working length (mm) |
320 |
620 |
900 |
1000 |
1200 |
1530/1830 |
2130 |
|
|
Capacity (kg/batch) |
1~2 |
10~15 |
20 |
18~35 |
25~50 |
50~100 |
90~120 |
|
|
Front roll speed (m/min) |
8.03 |
14.1 |
16.25 |
18.65 |
24.5 |
27.87 |
28.6 |
|
|
Roll speed ratio |
1:1.35 |
1:1.17 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.29 |
|
|
Motor power (kw) |
7.5 |
18.5 |
37 |
37 |
55 |
90/110 |
160 |
|
|
Size (mm) |
Length |
1380 |
3000 |
3850 |
4250 |
5200 |
6500 |
7500 |
|
Width |
860 |
1500 |
1650 |
1850 |
1800 |
2300 |
2500 |
|
|
Height |
1320 |
1500 |
1750 |
1870 |
2000 |
2000 |
2640 |
|
|
Weight (KG) |
1000 |
3000 |
6500 |
7000 |
10000 |
20000 |
28000 |
|
Applications
An open-type rubber mixing mill is a mechanical device used for the warm-up milling, mixing, plasticizing, and sheeting of rubber. It is widely applied in the rubber industry, including the manufacturing of conveyor belts, tires, hoses, and other rubber products.
Production Function
Used for the plasticizing and mixing of raw materials such as rubber and plastics, as well as the warm-up milling and sheeting of rubber compounds.
Product Features
The product can be customized. This machine features an instant reverse function and a reverse braking system for emergency stops. It incorporates dual mechanical and electrical interlocking for enhanced safety and reliability.
Our Service
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Serving key sectors:
- Tire Manufacturing
- Rubber & Plastics Processing
- Thermal Insulation Materials
- Sealing Products
- Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)

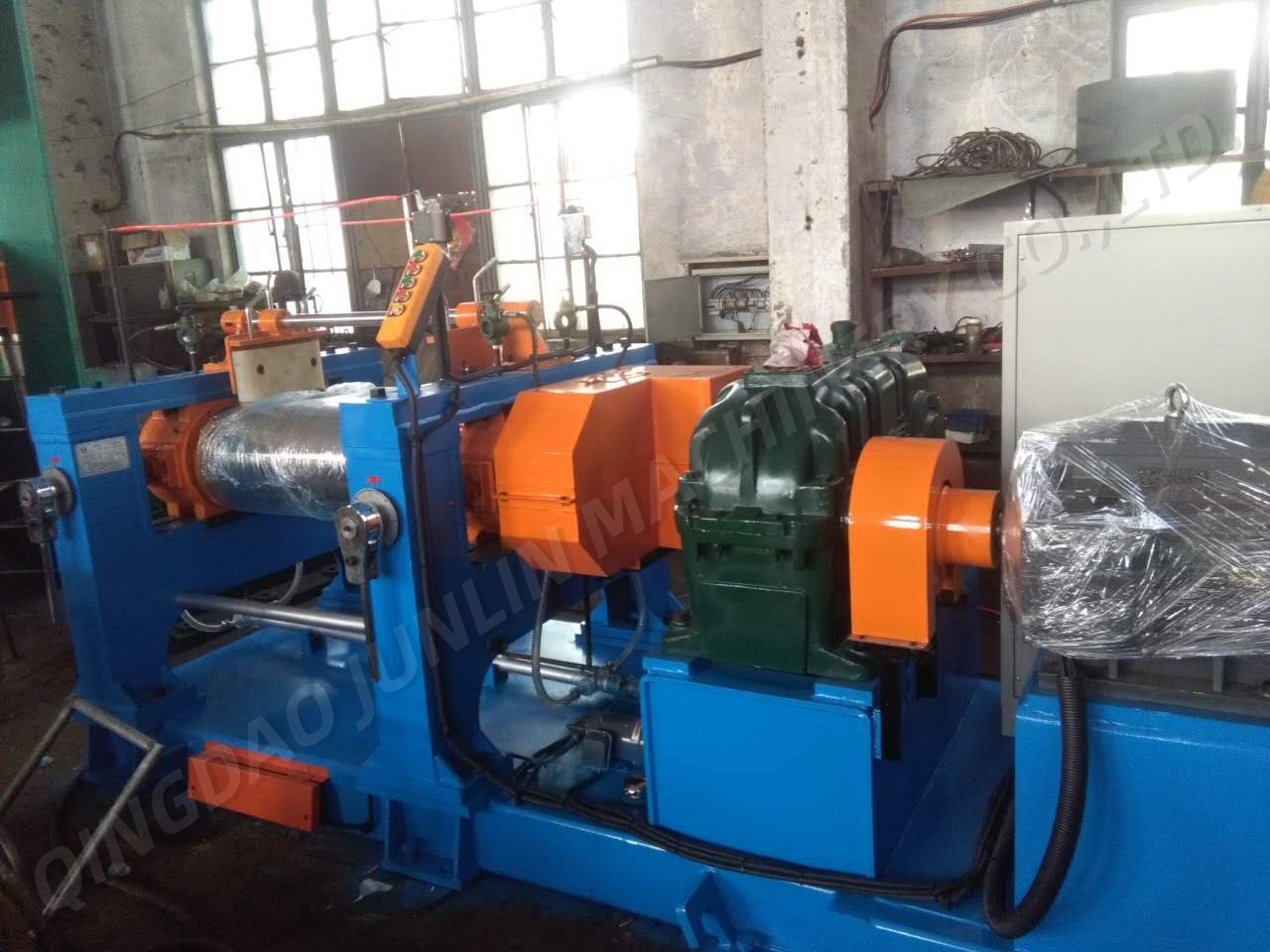

Product Images
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
