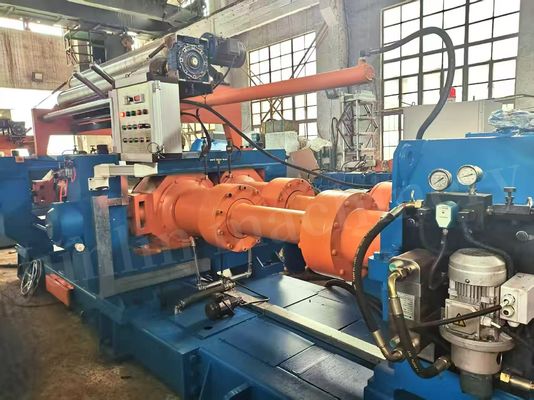

Made In China XK-710 28 Inch Open Mixing Mill With Stock Blender
Product Details
| Type: | Open Mixing Mill | Layout Type: | Horizontal |
|---|---|---|---|
| Bush: | Nylon Bush,bearing Bush,ball Bearing B,cooper Bush | Warranty: | 1 Year |
| Heating Method: | Electrical Heating | Safety Device: | Collision Type Emergency Stop,Hydraulic Brake |
| Highlight |
28 inch open mixing mill,open mixing mill with blender,XK-710 mixing mill with warranty |
||
Product Description
| model | XK-160 | XK-230 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ160 | Φ230 | Φ250 | Φ360 | Φ400 |
| Working length of rollers(mm) | 320 | 600 | 620 | 900 | 1000 |
| Liner speed of front rollers | 8.03 | 10.94 | 14.1 | 16.25 | 18.65 |
| Speed ratio of front and rear roller | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.27 |
| Capacity per batch(kg) | 1～2 | 6～10 | 10～15 | 20～25 | 18～35 |
| Motor power(kw) | 7.5 | 15 | 18.5 | 30 | 37 |
| Overall size L×W×H(mm) | 1380×860×1320 | 2800×1200×1120 | 3000×1500×1500 | 3850×1650×1750 | 4250×1850×1870 |
| Weight (kg) | 1000 | 2300 | 3000 | 6500 | 7000 |
| Notes | Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil | ||||
| model | XK-450 | XK-550/560 | XK-610 | XK-660 | XK-710 | XK-810 |
|---|---|---|---|---|---|---|
| Working diameter of rollers(mm) | Φ450 | Φ560/Φ510 | Φ610 | Φ660 | Φ710 | Φ810 |
| Working length of rollers(mm) | 1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 |
| Liner speed of front rollers | 24.5 | 27.87 | 30 | 28.6 | 31.9 | 21 |
| Speed ratio of front and rear roller | 1:1.27 | 1:1.2 | 1:1.29 | 1:1.24 | 1:1.15 | 1:1.27 |
| Capacity per batch(kg) | 25～50 | 50～100 | 90～120 | 130～165 | 150～200 | 180～250 |
| Motor power(kw) | 55 | 90/110 | 160/185 | 185/250 | 285 | 2x250 |
| Overall size L×W×H(mm) | 5200×1800×2000 | 6500×2300×2000 | 7500×2500×2640 | 7600×3400×2500 | 8246×3556×2270 | 9736×5160×2070 |
| Weight (kg) | 10000 | 20000 | 28000 | 47000 | 51000 | 74500 |
| Notes | Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil | |||||
An open rubber mixing mill is a mechanical device used for rubber hot mixing, compounding, plasticizing, and sheeting. It is widely employed in the rubber industry and is suitable for the production processes of rubber products, conveyor belts, and other rubber industrial products.
It is used for the plasticizing and mixing of raw materials such as rubber and plastics, as well as the hot refining and sheeting of rubber compounds.
The product can be customized, the equipment is safe, it automates the process replacing manual labor, and it reduces the intensity of manual operations.
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)
Product Highlights
