Customised Fully Automatic Two Roll Open Mill With Emergency Stop Button
Product Details
| Product Name: | Open Mixing Mill | Warranty: | 1 Year |
|---|---|---|---|
| Material Of Roll: | Alloy Chilled Cast Iron | Diameter Of Roll: | Customized |
| Roll Speed Ratio: | Adjustable | Safety Device: | Emergency Stop Button |
| Highlight |
customized fully automatic open mixing mill,two roll open mill with emergency stop,open mixing mill with warranty |
||
Product Description
Customised Fully Automatic Two Roll Open Mill With Emergency Stop Button
Technical Parameters
| Model | XK-160 | XK-230 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|---|
| Working diameter of rollers (mm) | Φ160 | Φ230 | Φ250 | Φ360 | Φ400 |
| Working length of rollers (mm) | 320 | 600 | 620 | 900 | 1000 |
| Speed ratio of front and rear roller | 8.03 | 10.94 | 14.1 | 16.25 | 18.65 |
| Capacity per batch (kg) | 1～2 | 6～10 | 10～15 | 20～25 | 18～35 |
| Power (kw) | 7.5 | 15 | 18.5 | 30 | 37 |
| Overall size L×W×H (mm) | 1380×860×1320 | 2800×1200×1120 | 3000×1500×1500 | 3850×1650×1750 | 4250×1850×1870 |
| Weight (kg) | 1000 | 2300 | 3000 | 6500 | 7000 |
| Model | XK-450 | XK-550/560 | XK-610 | XK-660 | XK-710 | XK-810 |
|---|---|---|---|---|---|---|
| Working diameter of rollers (mm) | Φ450 | Φ560/Φ510 | Φ610 | Φ660 | Φ710 | Φ810 |
| Working length of rollers (mm) | 1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 |
| Speed ratio of front and rear roller | 24.5 | 27.87 | 30 | 28.6 | 31.9 | 21 |
| Capacity per batch (kg) | 25～50 | 50～100 | 90～120 | 130～165 | 150～200 | 180～250 |
| Power (kw) | 55 | 90/110 | 160/185 | 185/250 | 285 | 2x250 |
| Overall size L×W×H (mm) | 5200×1800×2000 | 6500×2300×2000 | 7500×2500×2640 | 7600×3400×2500 | 8246×3556×2270 | 9736×5160×2070 |
| Weight (kg) | 10000 | 20000 | 28000 | 47000 | 51000 | 74500 |
Notes: Nylon bush uses grease for lubricating, Copper bush and bearing use grease or oil
Applications
The open type rubber mixing mill machine is a piece of machinery used for the thermal mixing, blending, plasticizing and pressing of rubber. Different models of open type rubber mixing machines have various specifications and are suitable for the processing of solid silicone rubber, rubber-plastic materials, etc. With its simple structure and convenient operation, it is widely used in the production of rubber industries such as tire factories, conveyor belt factories, conveyor belt factories, rubber product factories, recycled rubber factories, shoe factories, cable factories, rubber hose factories, sealing parts, etc.
Production Function
Used for plasticizing and mixing raw materials such as rubber and plastic, as well as for hot-mixing and pressing of rubber compounds.
Production Features
The product can be customized. It features automated production, easy operation, convenient maintenance, high safety and reliability, and is applicable to various types of rubber materials.
Our Service
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)

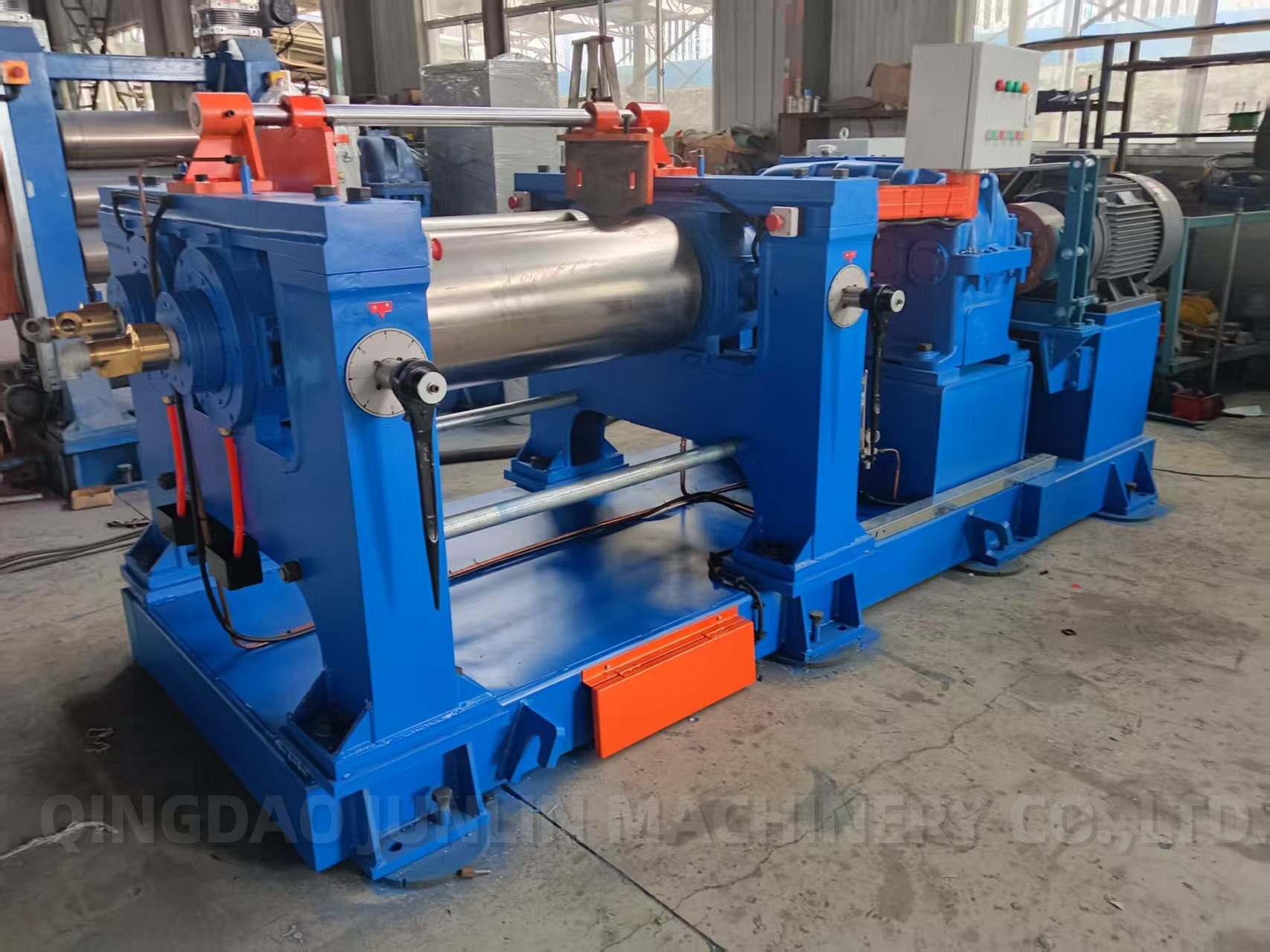

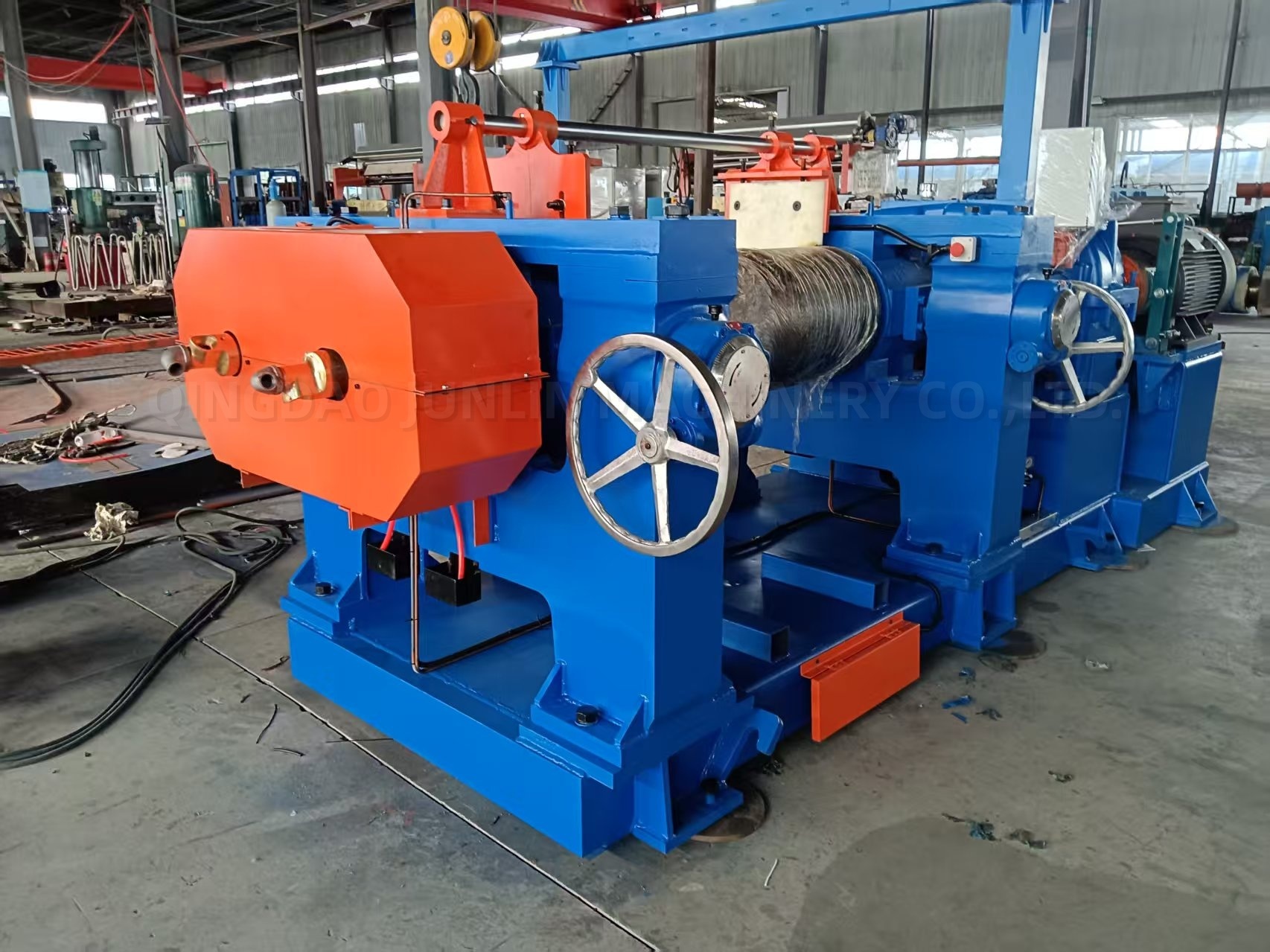

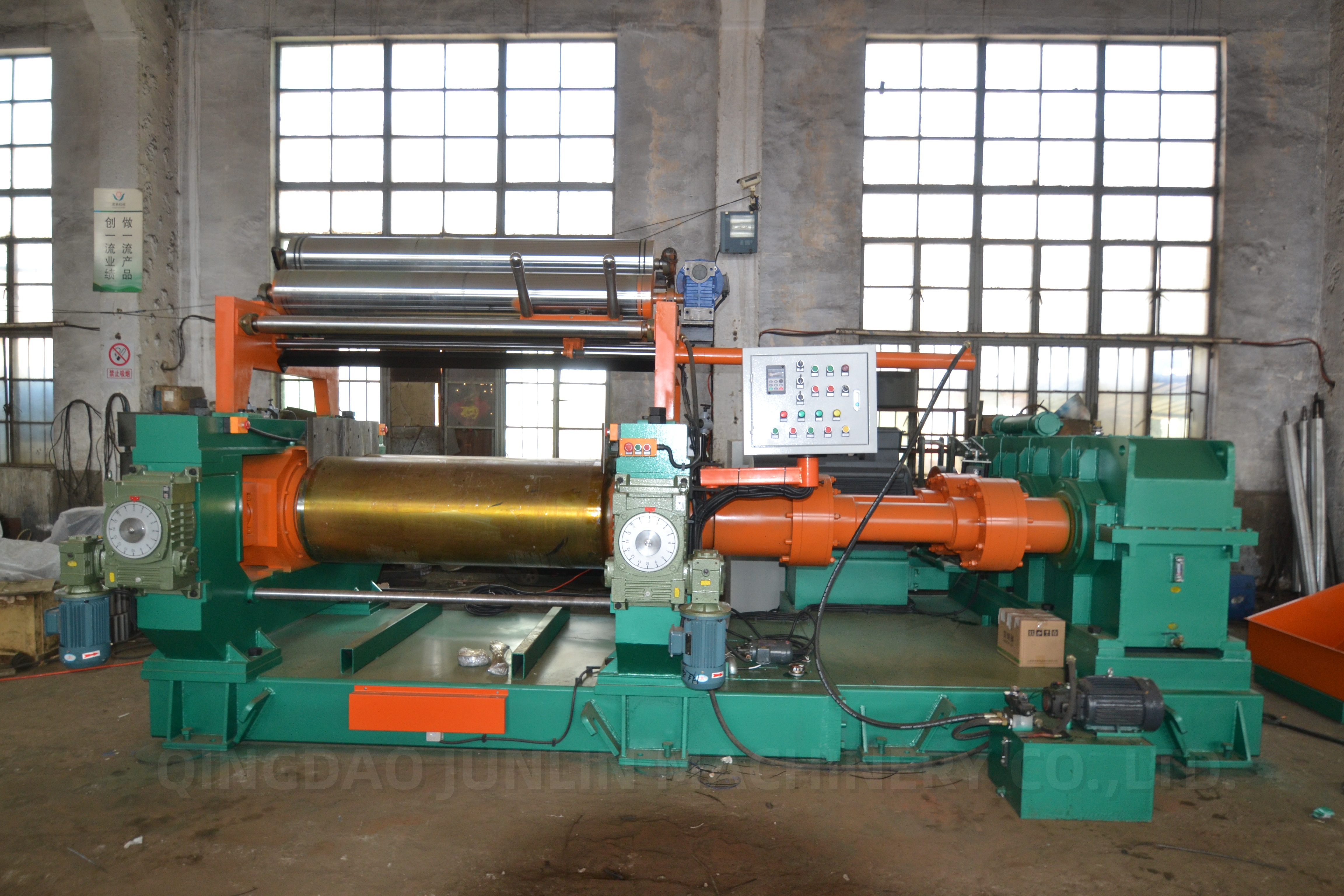

Production Images
(Our products and parameters are constantly being improved and optimized. For the latest information, please contact us.)
