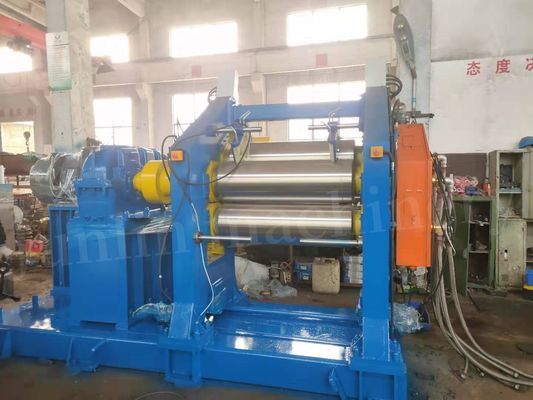

XY Series Three-Roll Rubber Calender Machine For Rubber Sheet
Product Details
| Color: | Customized | Control System: | Manual Or Automatic |
|---|---|---|---|
| Condition: | New | Power Source: | Electric Or Hydraulic |
| Safety Features: | Emergency Stop , Safety Guards | Maintenance: | Regular Cleaning And Lubrication |
| Highlight |
three-roll rubber calender machine,rubber sheet calender machine,XY series rubber calender |
||
Product Description
XY Series Three-Roll Rubber Calender Machine For Rubber Sheet
Product Specifications
| Model | Linear speed of front rollers(m/min) | Speed ratio of front and rear roller | Max product width(mm) | Min product thickness(mm) | Motor power(kw) | Overall size(mm) L×W×H | Weight(kg) |
|
XY-3Φ 252×720 |
1.2~12 | 1:1:1 | 580 | 0.2 | 22 | 3950×1720×1210 | 5500 |
|
XY-3Φ 360×1120 |
3~20.2 | 1:1:1 | 920 | 0.2 | 45 | 6500×1500×2440 | 14000 |
|
XY-3Φ 450×1500 |
2.5~26 | 1:1:1 | 1250 | 0.2 | 75 | 7320×2200×2900 | 21000 |
|
XY-3Φ 550×1500 |
3~30 | 1:1:1 | 1300 | 0.2 | 110 | 7550×2400×3800 | 35000 |
|
XY-3Φ 610×1730 |
5.4~54 | 1:1:1 | 1500 | 0.2 | 160 | 7010×3950×3730 | 42000 |
|
XY-3Φ 710×2130 |
8~50 | 1:1:1 | 1850 | 0.2 | 185 | 7650×4560×4080 | 67000 |
|
XY-3Φ 810×2430 |
4~40 | 1:1:1 | 2150 | 0.2 | 132×3 | 11400×3200×5050 | 110000 |
Application Scenario
The equipment can be applied to all calendering work areas of rubber products manufacturing industries such as tires , conveyor belts , hoses and engineering rubber.
Product Function
Mainly used for calendering of rubber and rubber-plastic , frictioning and rubberizing for fabrics and compounding of rubber and rubber-plastic , etc.
Product Features
Smooth and flexible operation , simple maintenance , durability and reliability.
- 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
- Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
- Genuine Parts Supply: Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)

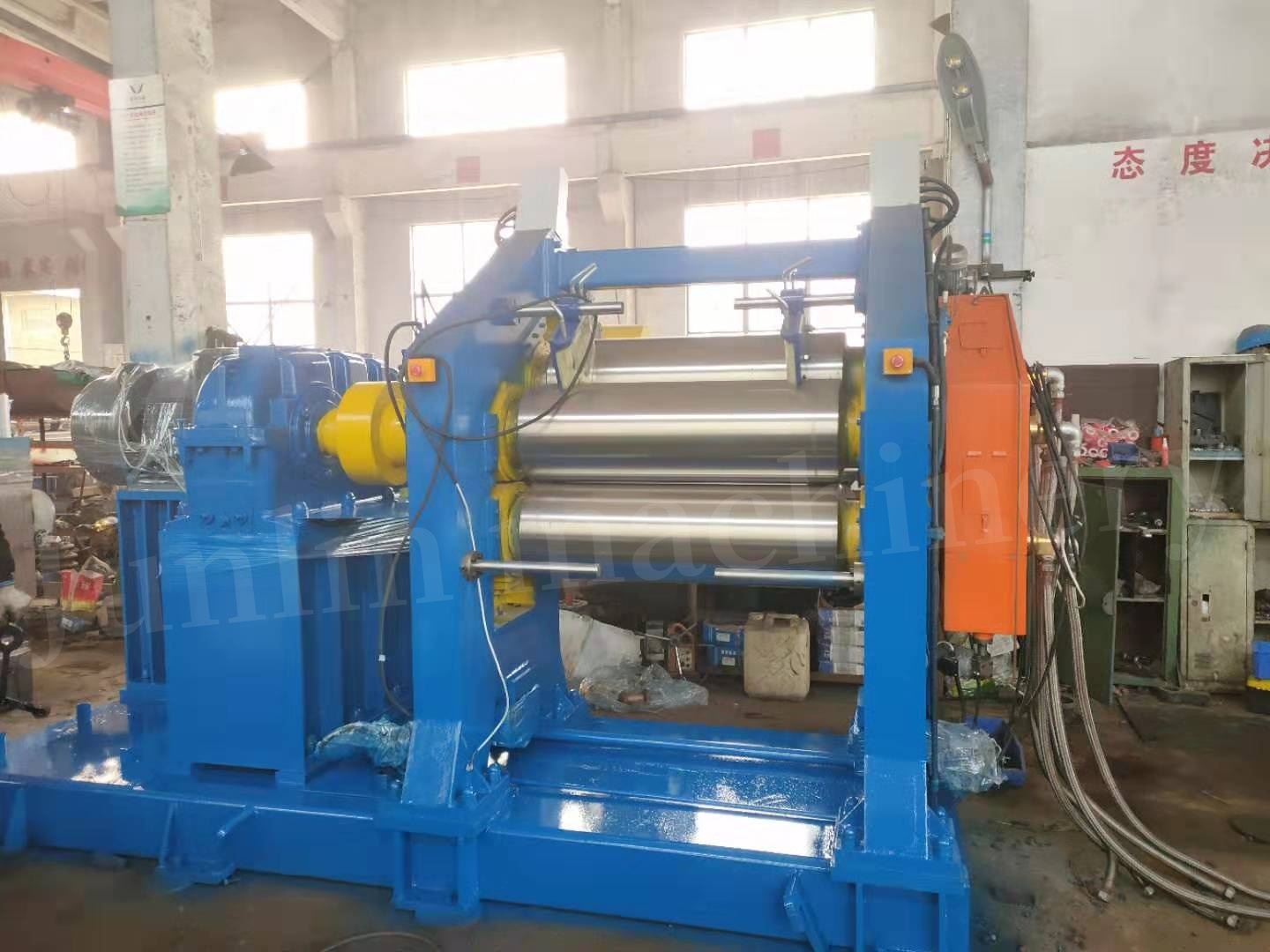

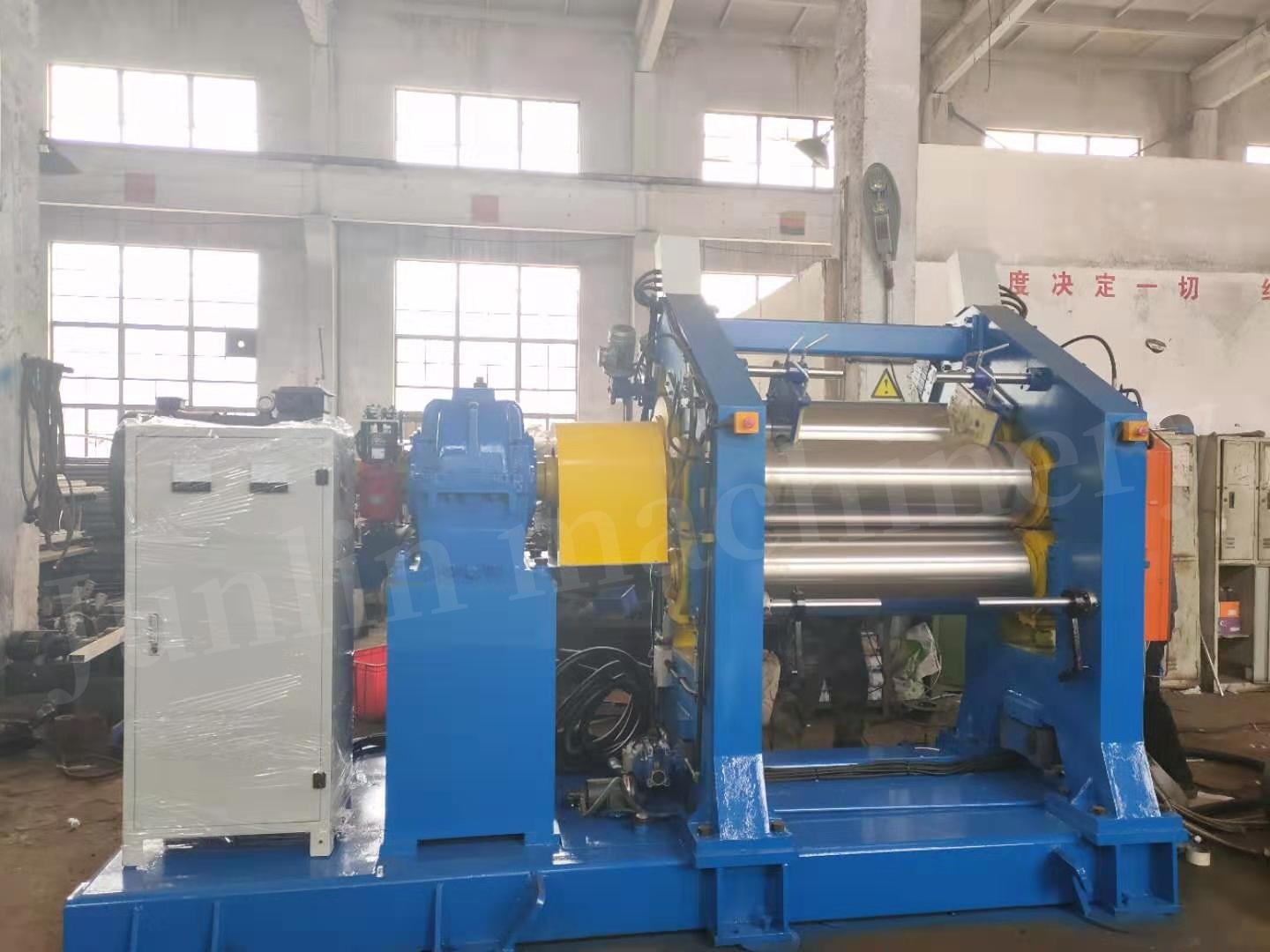

Product Images
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
