Space Saving Overhead Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Product Details
| Product Type: | Batch Off Cooler | Specification: | Customized |
|---|---|---|---|
| Voltage: | 380V , 50Hz | Core Components: | Motor , Fans |
| Number Of Fans: | Customized | Control System: | PLC |
| Highlight |
overhead hanging batch off cooler,rubber sheet cooling rods,space saving rubber cooler |
||
Product Description
Space Saving Overhead Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Products Parameters
| Applicable piece specification(T*W)(mm) | (4-12)*600-900 |
| Power supply(V/Hz) | 380/50 |
| Compressed air pressure(Mpa) | 0.4~0.8 |
| Piece-joining conveying max speed(m/min) | Customized |
| Piece rod chain speed(m/min) | 0.117~0.75 |
| Max pendent length of hanging sheet(mm) | 1400~1700 |
| Sheer temperature(for reference) | Ambient temperature+5℃ |
Application scenario
As the lower auxiliary machine of the mixer , this equipment is directly connected to the outlet of the extruder or mill , it is used for processing the high-temperature rubber sheets just extruded , quickly cooling it and aoviding excessive sulfur or adhesive adhesion.It is commonly used in continuous production lines such as tires , conveyor belts , seals , hoses , rubber-plastics , cables , etc.
Product Function
Jointing , longitudinal cutting , cooling , drying , transverse cutting or folding the rubber sheets with higher temperature into a stack.
Product Features
The product can be customized , the system is intelligent , the parameters such as hanging height and swinging range can be set digitally , which adapts to different kind of rubber pieces.It also has the ability of automatic assembly line , significantly improve production efficiency and workshop environment.
➤ Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
➤ Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
➤ Industry-Specific Expertise
Serving key sectors:
· Tire Manufacturing
· Rubber & Plastics Processing
· Thermal Insulation Materials
· Sealing Products
· Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
➤ Comprehensive After-Sales Support
▌ 24/7 Technical Assistance
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance.
▌ Customized Engineering Solutions
Tailored process optimization and lifecycle management guidance for rubber compounding operations.
▌ Genuine Parts Supply
Original components provided (transportation costs borne by customer).
▌ Quality Warranty Commitment
Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement).

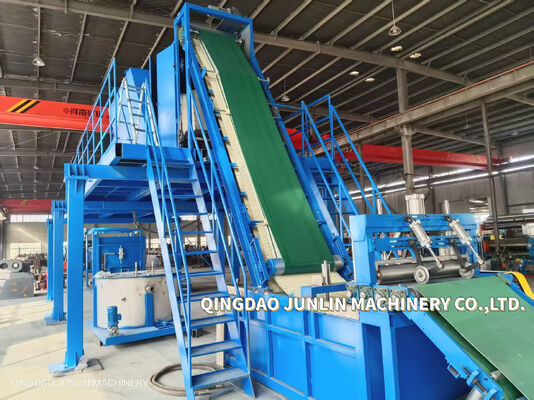

Product Images
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
