16 Inch Open Mixing Mill Machine XK-400 For Rubber Processing
Product Details
| Color: | Customized | Warranty: | 1 Year |
|---|---|---|---|
| Package Size: | According To Product Size | Material Of Roll: | Alloy Chilled Cast Iron |
| Voltage: | 380V 50HZ Or Customized | Safety Device: | Emergency Stop Button |
| Highlight |
16 inch rubber mixing mill,XK-400 open mixing machine,rubber processing mill machine |
||
Product Description
16 Inch Open Mixing Mill Machine XK-400 For Rubber Processing
Technical Paremeters
|
Model |
XK-160 | XK-230 | XK-250 | XK-360 | XK-400 | |
|
Working diameter of rolllers(mm) |
Φ160 | Φ230 | Φ250 | Φ360 | Φ400 | |
|
Working length of rollers(mm) |
320 | 600 | 620 | 900 | 1000 | |
| Linear speed of front rollers(m/min) |
8.03 | 10.94 | 14.1 | 16.25 | 18.65 | |
| Speed ratio of front and rear roller |
1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.27 | |
| Capacity per batch(kg) |
1~2 | 6~10 | 10~15 | 20~25 | 18~35 | |
| Motor Power(kw) |
7.5 | 15 | 18.5 | 30 | 37 | |
| Overall size (mm) |
Length | 1380 | 2800 | 3000 | 3850 | 4250 |
| Width | 860 | 1200 | 1500 | 1650 | 1850 | |
| Height | 1320 | 1120 | 1500 | 1750 | 1870 | |
| Weight(kg) |
1000 | 2300 | 3000 | 6500 | 7000 | |
| Notes |
Nylon bush use grease for lubricating , Copper bush and bearing use grease or oil | |||||
| Model |
XK-450 | XK-560 | XK-610 | XK-660 | XK-710 | XK-810 | |
| Working diameter of rolllers(mm) |
Φ450 | Φ560/Φ510 | Φ610 | Φ660 | Φ710 | Φ810 | |
| Working length of rollers(mm) |
1200 | 1530/1830 | 1830~2000 | 2130 | 2200 | 2540 | |
| Linear speed of front rollers(m/min) |
24.5 | 27.87 | 30 | 28.6 | 31.9 | 32 | |
| Speed ratio of front and rear roller |
1:1.27 | 1:1.2 | 1:1.29 | 1:1.24 | 1:1.15 | 1:1.27 | |
| Capacity per batch(kg) |
25~50 | 50~100 | 90~120 | 130~165 | 150~200 | 180~250 | |
| Motor Power(kw) |
55 | 90/110 | 160/185 | 185/250 | 285 | 2×250 | |
| Overall size (mm) |
Length | 5200 | 6500 | 7500 | 7600 | 8246 | 9736 |
| Width | 1800 | 2300 | 2500 | 3400 | 3556 | 5160 | |
| Height | 2000 | 2000 | 2640 | 2500 | 2270 | 2070 | |
| Weight(kg) |
10000 | 20000 | 28000 | 47000 | 51000 | 74500 | |
| Notes |
Nylon bush use grease for lubricating , Copper bush and bearing use grease or oil | ||||||
Applications
The open rubber mixing mill machine is suitable for rubber-related industries such as transmission belt factory , conveyor belt factory , rubber products factory , reclaimed rubber factory , shoe factory , cable factory , rubber hose factory , sealing parts , etc. It is mainly used for the rapid mixing of raw rubber , the mixing of rubber compounds , the hot mixing of mixed rubber , the supply of rubber , etc. It is also be used in plastic processing and industrial production of paint pigments.
Product Function
This machine mainly used for the plasticizing of rubber compounds , the mixing of raw rubber and additives , the hot mixing of rubber compound , and the sheeting process.
Product Features
The product can be customized and it employs a ZSY hardened gear reducer , which offers advantages such as long service life,high load capacity , high efficiency , low noise , compact structure , small footprint , small size and light weight.
Our Service
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements , ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable , high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
Serving key sectors including tire manufacturing , rubber & plastics processing , thermal insulation materials , sealing products , and industrial rubber applications. Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
• 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
• Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
• Genuine Parts Supply: Original components provided (transportation costs borne by customer)
• Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)

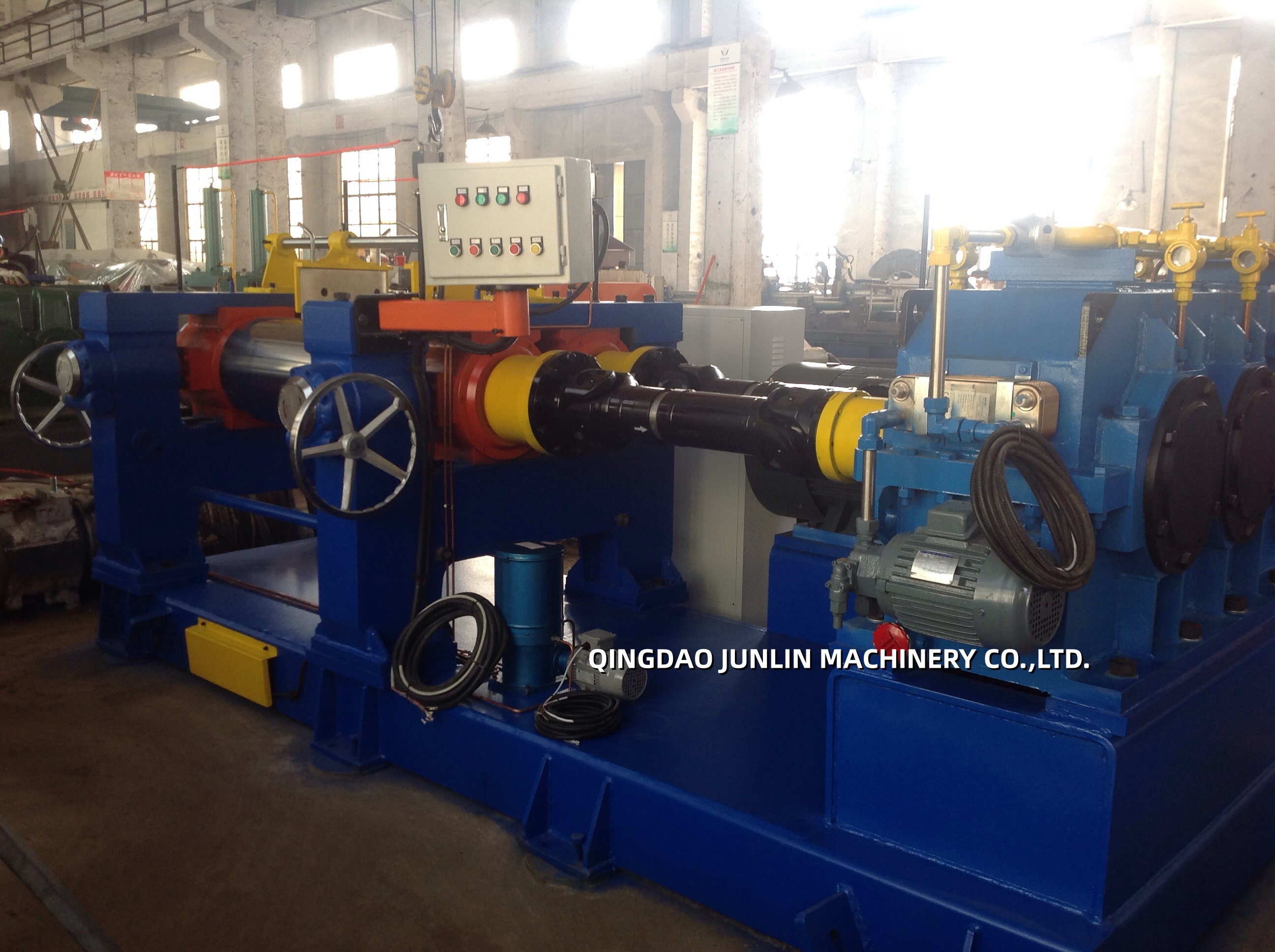

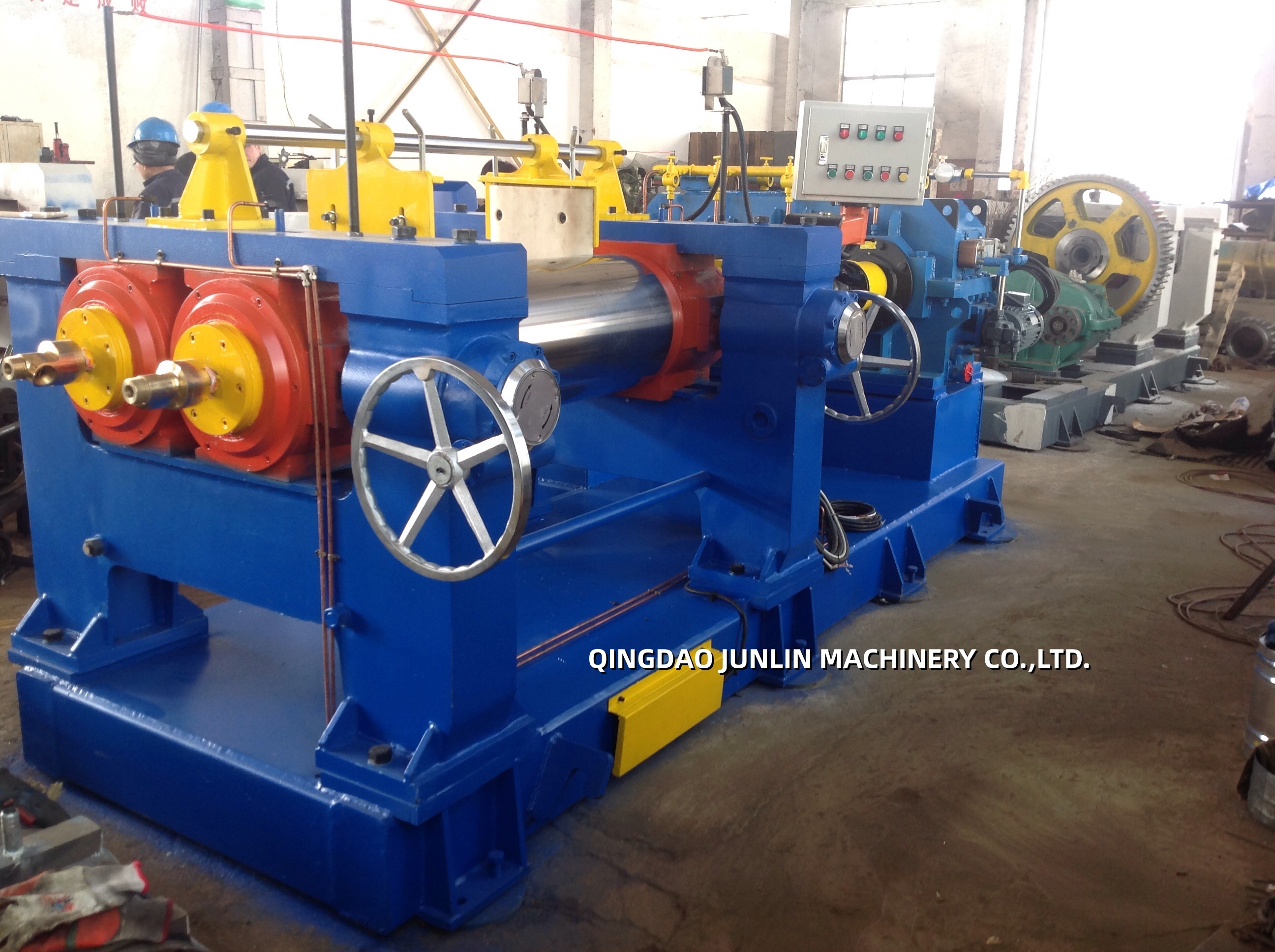

Product Images
(Our pruducts and parameters are constantly being improved and optimized. For zhe latest information , please contact us.)
