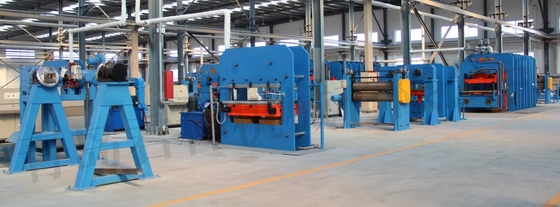

Horizontal Rubber Conveyor Belt Production Line Customized Voltage
Product Details
| Type: | Rubber Conveyor Belt Production Line | Structure: | Horizontal |
|---|---|---|---|
| Our Techincial: | Own Professional Design | Voltage: | Customized |
| Plug: | Harting Or As Request | Function: | VULCANIZER |
| Highlight |
Horizontal Rubber Conveyor Belt Production Line,Rubber Conveyor Belt Production Line Customized,industrial rubber belt manufacturing equipment |
||
Product Description
| Attribute | Value |
|---|---|
| Type | Rubber Conveyor Belt Production Line |
| Structure | Horizontal |
| Our Technical | Own Professional Design |
| Voltage | Customized |
| Plug | Harting or as request |
| Function | VULCANIZER |
| Liner Rewinding Unit | Green Belt Unwinding | Support Rollers Assembly | Front/Rear Drawing Unit |
|---|---|---|---|
| Max. Liner Rewinding Diameter: 600mm | Max. Green Belt Diameter: 3000mm | Support Roller Diameter: Ø80mm | Hauling Speed: 15 m/min |
| Max. Liner Rewinding Width: 1400 mm | Max. Width: 1400 mm | Support Roller Face Length: 1400 mm | Max. Hauling Width: 1400 mm |
Specifically engineered for continuous manufacturing processes within the rubber products industry, including but not limited to:
- High-volume production of rubber conveyor belts
- Industrial-scale fabrication of rubber sheeting/plates
- Continuous processing of composite rubber materials

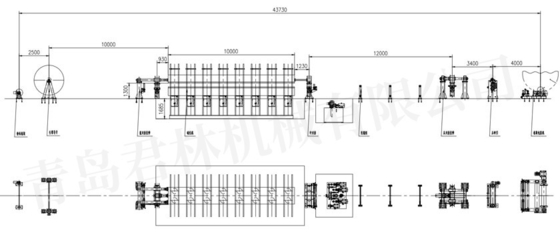

The integrated production system comprises:
- Unwinding Unit - Automated material feeding system
- Front Tension Control Station - Initial web handling and alignment
- Main Processing Unit - Core calendering/laminating machinery
- Intermediate Tension Control - Mid-line web stability management
- Rear Tension Control - Output section tension regulation
- In-line Inspection & Repair Station - Defect detection and correction
- Rewinding System - Precision winding with tension control
- 24/7 continuous production capability
- ≤0.5% downtime rate through robust design
- PLC-based programmable tension zones
- Speed synchronization across all stations
- Heavy-gauge steel frame with anti-vibration mounts
- Wear-resistant components rated for 100,000+ operating hours
