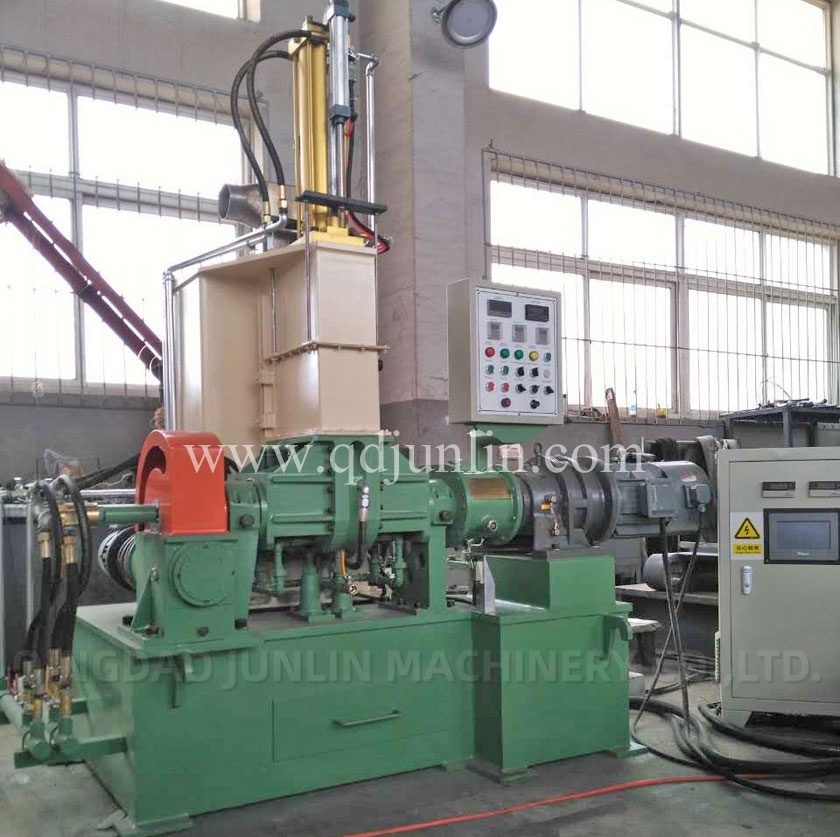

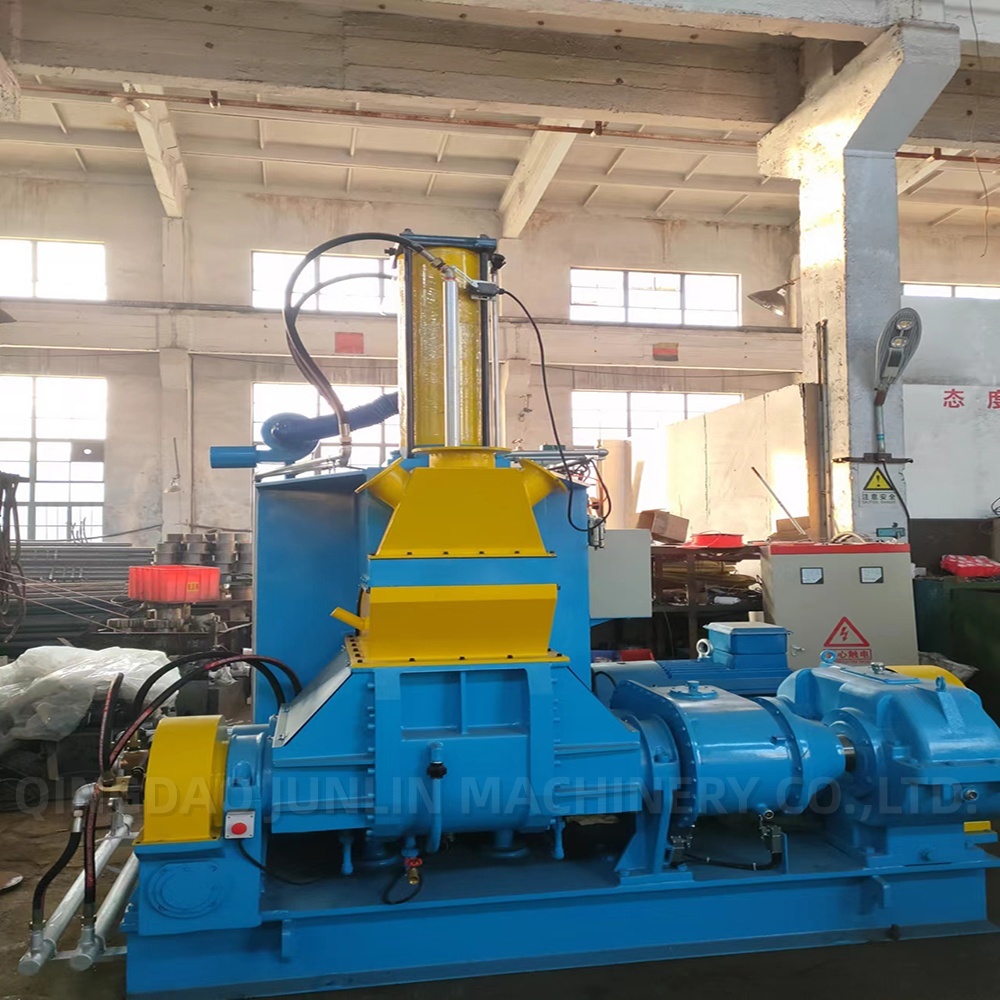

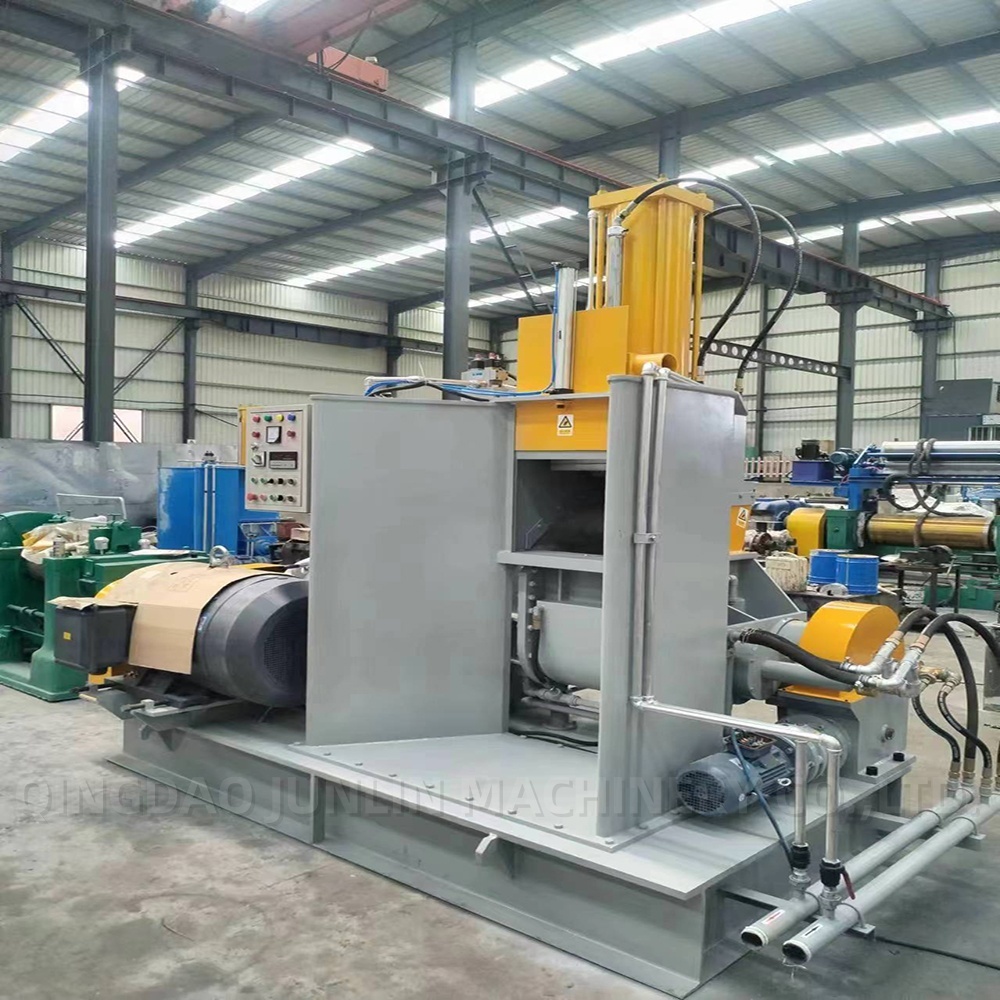

Durable X(S)N Rubber Dispersion Kneader Machine for Rubber and Plastic
Product Details
| Type: | Rubber Kneader | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Color: | Customized |
| Application: | Rubber Processing Machinery,plasticating And Mixing Rubber And Plastic | Weight: | According To The Product |
| Highlight |
durable rubber kneader machine,X(S)N rubber dispersion kneader,rubber and plastic kneader machine |
||
Product Description
| Model | Unit | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 | X(S)N-150*30 |
|---|---|---|---|---|---|---|
| Total volume of kneading chamber | L | 75 | 125 | 180 | 250 | 325 |
| Total volume of mixing chamber | L | 35 | 55 | 75 | 110 | 150 |
| Driving motor power | KW | 55 | 75 | 110 | 185 | 220 |
| Tipping motor power | KW | 2.2 | 2.2 | 2.2 | 4 | 11 |
| Tipping angle | 140° | 140° | 140° | 140° | 135° | |
| Rotational speed of the rotor(front/back) | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Working pressure of compressed air | Mpa | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Flow rate of compressed air | m³/min | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 |
| Pressure of cooling water(rubber mixing) | Mpa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Pressure of heated steam(plastication) | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Overall size (L×W×H) | mm | 3200×1900×2945 | 3360×1950×3050 | 3760×2143×3135 | 4075×2712×3580 | 4200×2850×4110 |
| Weight | KG | 6500 | 7200 | 10000 | 14500 | 19500 |
Primarily used for the mixing and final refining of rubber or rubber-plastic materials in various industrial applications.
There are two types of devices, pneumatic and hydraulic. Under the pressure exerted by the upper ram weight, the material is subjected to shearing, squeezing, stirring, folding, and other kneading effects between two rotors rotating counter-rotating at a specific speed ratio, as well as between the rotors and the walls of the sealed mixing chamber. This process plasticizes (or blends) the raw material into the desired compound.
Customized solutions tailored to your specific process requirements with seamless equipment integration.
High-quality machinery built for durable and efficient operational performance.
Specialized solutions for tire manufacturing, rubber & plastics processing, thermal insulation materials, sealing products, and industrial rubber applications.
Including 24/7 technical assistance, customized engineering solutions, genuine parts supply, and quality warranty commitment.
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
