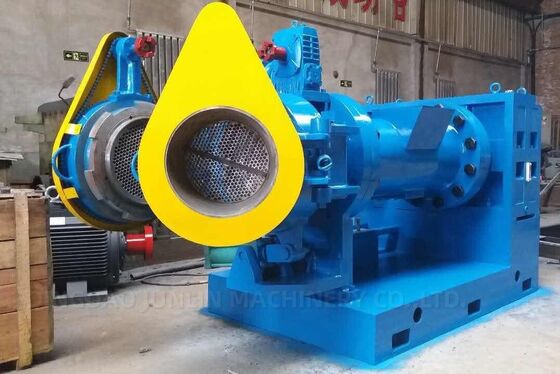

Hydraulic Double Head Rubber Strainer Machine / Butyl Reclaimed Rubber Sheeting Machine
Product Details
| Type: | Rubber Strainer | Head: | Double Head |
|---|---|---|---|
| Voltage: | As Per Requirement | Gearbox: | Hardened Reducer |
| Condition: | New | Warranty: | 1 Year |
| Highlight |
hydraulic rubber strainer machine,double head rubber sheeting machine,butyl reclaimed rubber extruder |
||
Product Description
| Model | XJL-90 | XJL-115 | XJL-120 | XJL-150 | XJL- 200 | XJL- 250 |
| Screw diameter(mm) | 90 | 115 | 120 | 150 | 200 | 250 |
| lengthdiameter(Id) | 4.5:1 | 4.5:1 | 4.5:1 | 4.5:1 | 4.35:1 | 4.5:1 |
| screw highest speed(r/min) | 50 | 50 | 50 | 45 | 40 | 40 |
| Motor power(Kw) | 22 | 30 | 30 | 45 | 75 | 110 |
| voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 |
| Steam pressure(Mpa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Cooling water pressure(Mpa) | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Maximum yield(kg/h) | 120 | 160 | 180 | 610 | 860 | 1600 |
| Equipment weight(t) | 2.6 | 3.1 | 3.6 | 6.1 | 7.2 | 7.8 |
The rubber filter machine is suitable for the rubber processing industry, designed to remove impurities from rubber compounds. It is primarily used in industrial applications such as rubber production, cable sheathing, and compound filtration.
The rubber filter machine is a branch type of rubber extruder that removes insoluble impurities such as iron filings and nylon from rubber compounds through the action of screw extrusion.
The product is customizable, effectively removes impurities from rubber compounds, ensures the purity and quality of the rubber materials, and caters to the application requirements of various industries.
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
