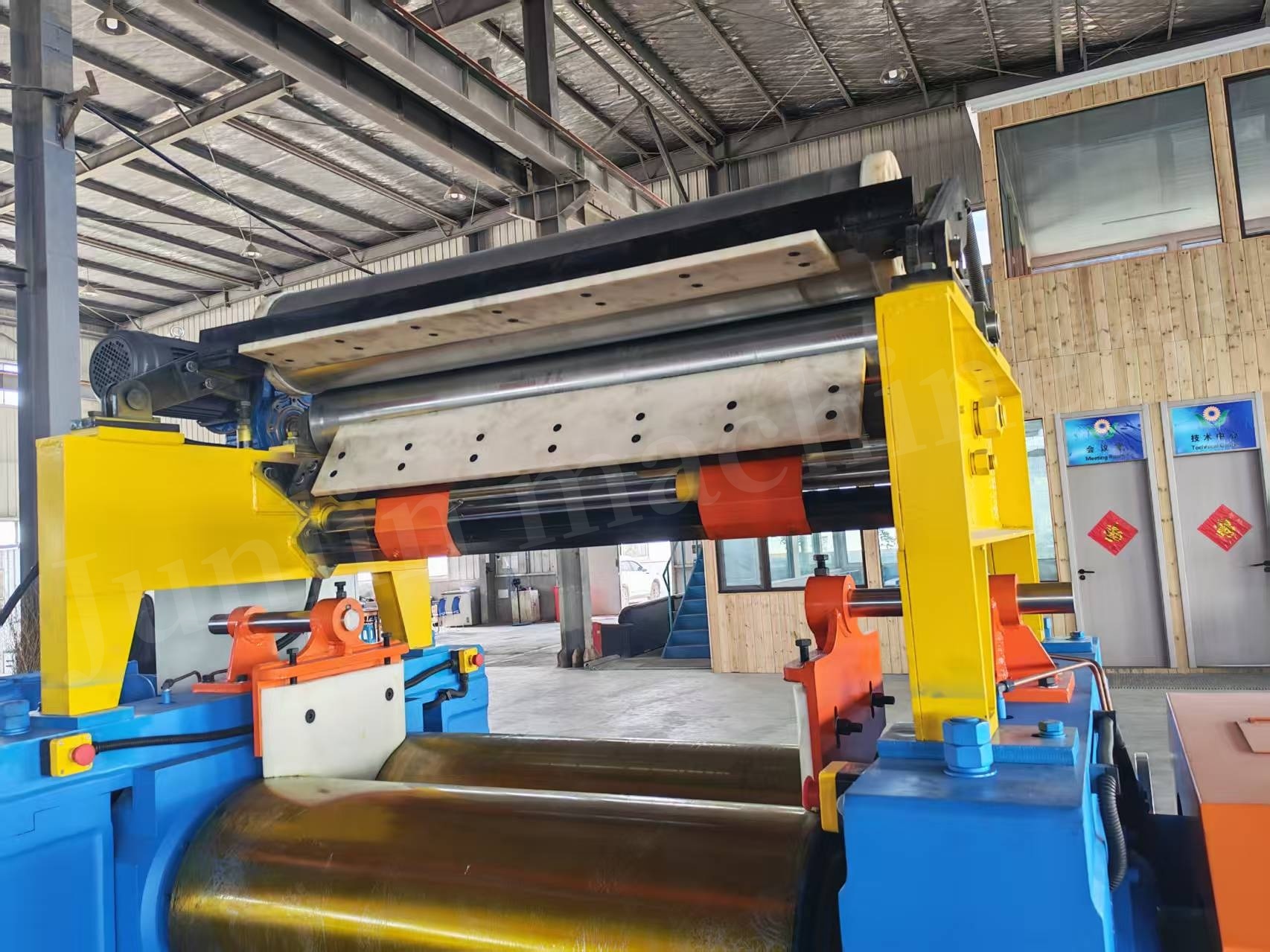

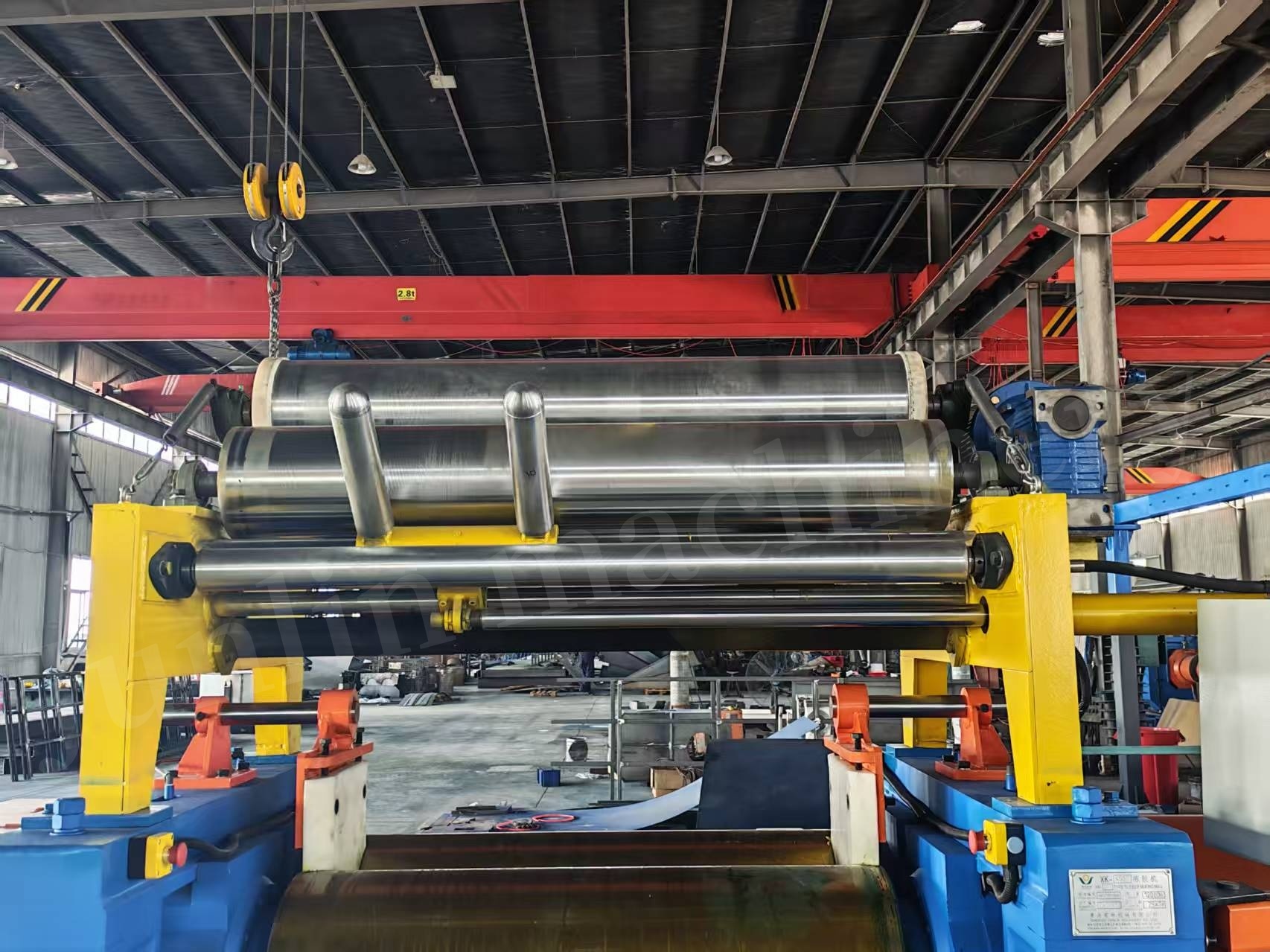

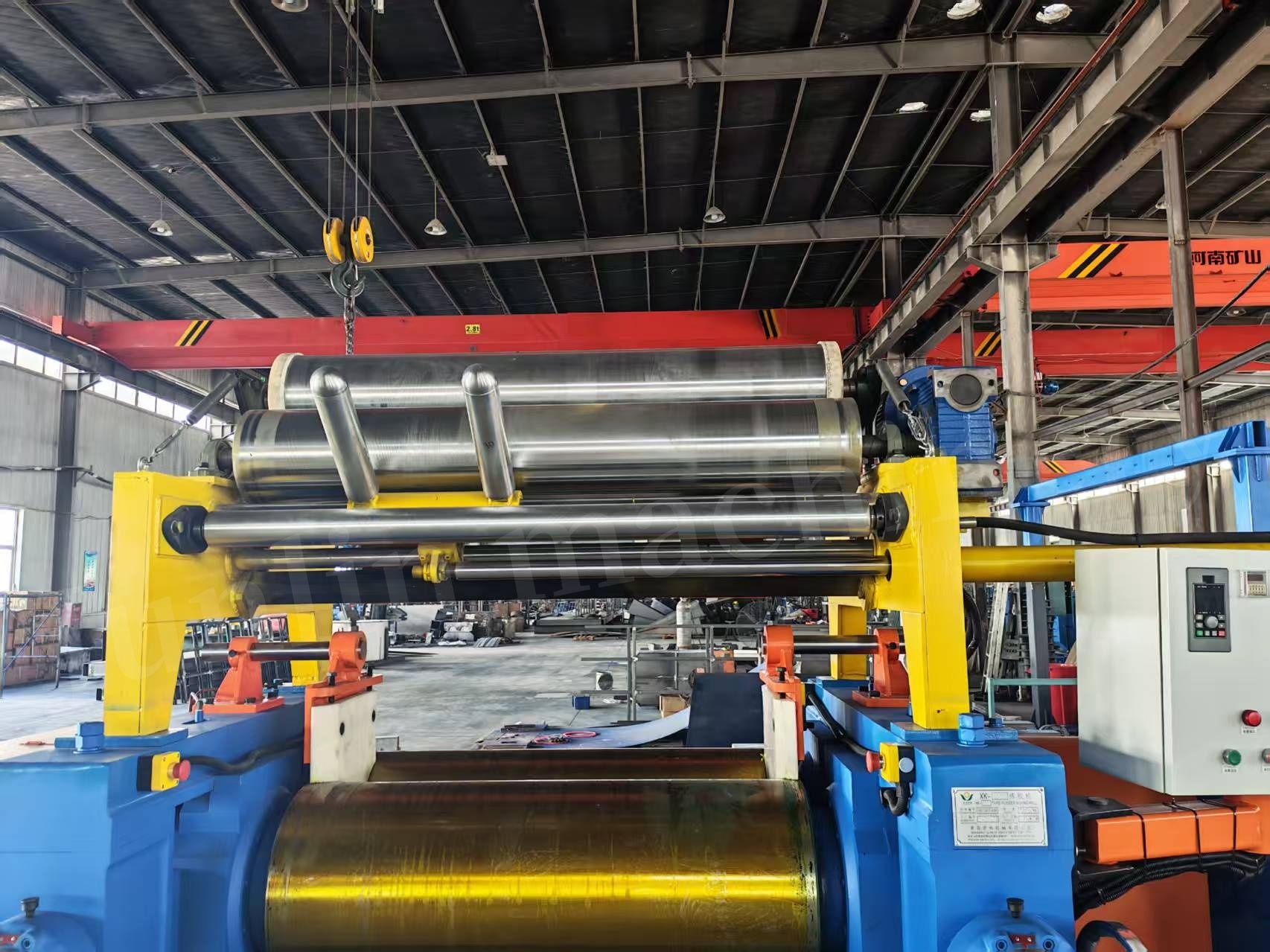

FG-450 Hydraulic Rubber Stock Blender For Mixing Mills 5200kgs
Product Details
| Year: | 1,NONE,custom | Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet |
|---|---|---|---|
| Type: | Stock Blender | Safety Device: | Collision Type Emergency Stop,Hydraulic Brake |
| Customizable: | Customized Products | Weight: | 5200kgs,1000kg,2T,About 375kg,1t-22t |
| Highlight |
Hydraulic Stock Blender,Stock Blender for Mixing Mills,5200kgs rubber mixer machine |
||
Product Description
| Model | FG-400 | FG-450 | FG-550 | FG-560 | FG-660 |
|---|---|---|---|---|---|
| Traction Roller Diameter (mm) | Ø 160 | Ø 160 | Ø 230 | Ø 230 | Ø 240 |
| Traction Roller Line Speed (m/min) | 2.0-21.65 | 2.7-27.67 | 3.0-33.72 | 3.0-33.72 | 30.0/27.0 |
| Traction Roller Power (kW) | 2.2 | 2.2 | 2.2 | 3 | 3 |
| Swivel Shaft Power (kW) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 |
| Dimensions (L×W×H) (mm) | 2200×850×900 | 2400×1100×900 | 2800×1200×900 | 2800×1200×900 | 3320×1200×930 |
| Weight (kg) | 900 | 1000 | 1500 | 1500 | 1900 |
- Mechanical blending replaces manual stock turning
- Enables automatic cyclic mixing
- Reduces labor intensity and improves mixing quality
- Hydraulic drive reduces maintenance requirements
- Enhanced safety features including collision-type emergency stop
- Low noise and energy efficient operation
- Customizable to specific production requirements
- Tire manufacturing
- Conveyor belt production
- Hose manufacturing
- Engineering rubber applications
- Reclaimed rubber plants
- Shoe factories
- Cable and hose production
- 24/7 Technical Assistance:
Round-the-clock remote support and rapid fault diagnosis
- Customized Engineering Solutions:
Tailored process optimization and lifecycle management guidance
- Genuine Parts Supply:
Original components provided (transportation costs borne by customer)
- Quality Warranty Commitment:
Free replacement for equipment damage caused by verified product defects
(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
